DwyerOmegaLR36

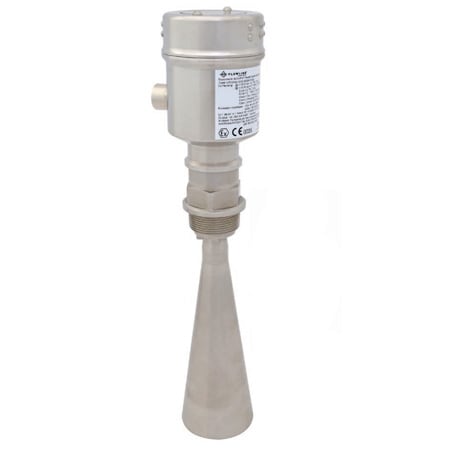

LR36-5021-40-00
1 1/2" NPT, 4" Horn Antenna, 12" to 42.9' Range
- 가격
- 4,890,010 원
- VAT 10%
- 489,001 원
- 총 금액
- 5,379,011 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 10 mm
Antenna Diameter:4 in
Antenna Length:11.34 in
Approvals:CE, RoHS, FCC
Approvals Note:ATEX IIG Ex ia II C T6...T3 Ga IEC Ex ia IIC T6...T3 Ga CSA Class I, Div 1, Groups A, B, C & D; Class II, Div 1, Groups E, F & G; (T6... T3); Class I Zone 0 AEx ia IIC (T6... T3) Ga & Zone 20 AEx ia IIIC (T76°C to T146°C) Da; Ex ia IIC (T6...T3) Ga & Ex ia IIIC (T76°C to T146°C) Ga
Bar Graph:Percent of Span
Beam Angle:8°
Configuration:Push Button, HART 7
Deadband:12 in
Display Measuring Units:ft, m
Display Type:LCD
Display and Indications:Echo Signal Curve
Electrical Connection:1/2 in NPT
Electrical Output:4 to 20 mA
Enclosure Ratings:IP67, NEMA Type 6
Frequency:26 GHz
Material Construction Option:Intrinsically safe
Materials:316 Stainless Steel, Polycarbonate
Measurement Type:Solid
Measuring Range, Max:49.2 ft
Measuring Range, Min:1 ft
Memory:Non-Volatile
Number of Wires:2
Operating Pressure, Max:580 psi
Operating Pressure, Min:-14.5 psi
Power Consumption:22.5 mA
Probe Type:Antenna
Process Connection Size:1 1/2 in
Process Connection Type:NPT Male and Female
Process Temperature, Max:200 °C
Process Temperature, Min:-40 °C
Signal fail-safe:3.9 mA, 20.5 mA, 22 mA
Signal invert:4 to 20 mA, 20 to 4 mA
Storage Temperature, Max:80 °C
Storage Temperature, Min:-40 °C
Supply Voltage:21.6 to 26.4 Vdc
Tank Type:Any
Temperature Compensation:Automatic
