DwyerOmegaLR15-Series
LR15-0010-30

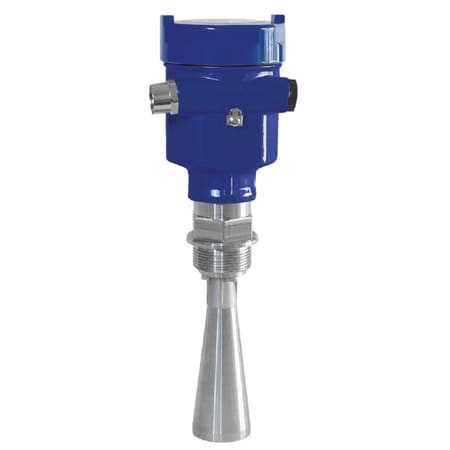

ECHOPULSE 26GHZ RADAR LEVEL TRANSMITTER,
- 가격
- 4,701,960 원
- VAT 10%
- 470,196 원
- 총 금액
- 5,172,156 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 3 mm
Antenna Diameter:3 in
Antenna Length:8.94 in
Approvals:CE, RoHS, CRN, cTUVus, FCC
Bar Graph:Percent of Span
Beam Angle:12°
Configuration:Push Button
Deadband:12 in
Display Measuring Units:ft, m
Display Type:LCD
Display and Indications:Echo Signal Curve
Electrical Connection:1/2 in NPT
Electrical Output:4 to 20 mA
Enclosure Ratings:IP67, NEMA Type 6
Frequency:26 GHz
Material Construction Option:General Purpose
Materials:316 Stainless Steel, Polycarbonate, Aluminum
Measurement Type:Liquid
Measuring Range, Max:98.4 ft
Measuring Range, Min:1 ft
Memory:Non-Volatile
Number of Wires:2
Operating Pressure, Max:150 psi
Operating Pressure, Min:-14.5 psi
Power Consumption:22.5 mA
Probe Type:3" Horn Antenna
Process Connection Size:1 1/2 in
Process Connection Type:NPT Male and Female
Process Temperature, Max:150 °C
Process Temperature, Min:-60 °C
Signal fail-safe:3.9 mA, 20.5 mA, 22 mA
Signal invert:4 to 20 mA, 20 to 4 mA
Storage Temperature, Max:80 °C
Storage Temperature, Min:-40 °C
Supply Voltage:16 to 26 Vdc
Tank Type:Any
Temperature Compensation:Automatic
