DwyerOmegaLDX-2-LVDT-Sig-Cond

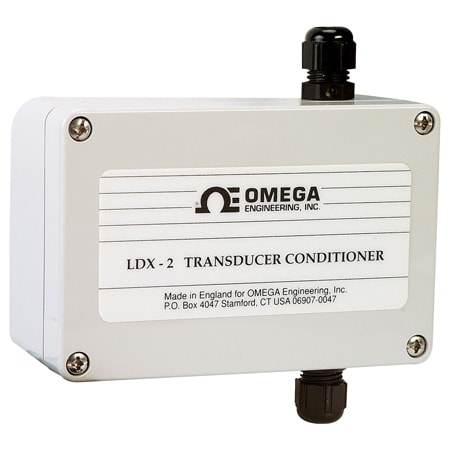

LDX-2
LVDT Signal Conditioner, Loop Powered for AC LVDT's
- 가격
- 1,380,890 원
- VAT 10%
- 138,089 원
- 총 금액
- 1,518,979 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.02 %
Approvals:CE
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 12
Gain Range:3.5 to 1 switched, 5 to 1 adjustable
Height:120.65 mm
Input Electrical Connection:Screw terminals; access through 2 cable ports for wires 1 to 5 mm (0.04 to 0.2") diameter
Input Noise:0 to 1.5 Hz: 1.4 µVRMS (RTI)
Input Range:30 to 530 mV/V
Input Type:Voltage
Length:54.86 mm
Mounting:Through holes in base by 2 screws and nuts, can be mounted to DIN 46277-1 rail
Non-Linearity:Better than 0.02%
Number of Wires:2, 3
Operating Temperature, Max:70 °C
Operating Temperature, Min:0 °C
Output Detail:Output Current: 4 to 20 mA 2-wire or 0 to 20 mA 3-wire. Output Ripple:<50 µA p-p @ 10 kHz Output Filter: Cutoff frequency -3 dB @ 25 Hz second-order linearity: <0.02%
Output Signal:Current
Protection:Oscillator Protection: Open and short circuit protected, Output Protection: Open and short circuit protected, Supply Protection: Reverse polarity protected
Sensitivity:Transducer : 30 to 530 mV/V
Sensor Excitation:0.9 Vrms @ 5 kHz nominal, 13 kHz switchable
Storage Temperature, Max:80 °C
Storage Temperature, Min:-40 °C
Supply Power Type:DC
Supply Voltage:13 to 48 Vdc, up to 30 mA
Temperature Coefficient:Zero: Better than 0.01% FS/°C;Gain: Better than 0.01% FS/°C
Weight:220 g
Width:80 mm
