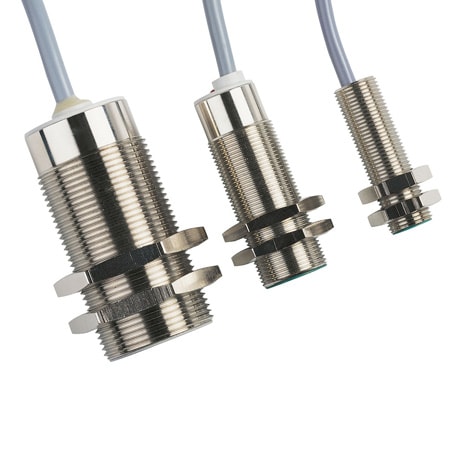

DwyerOmegaLD701
LD701-1/2
1 to 2 mm, 1 to 9 Vdc Output
- 가격
- 915,590 원
- VAT 10%
- 91,559 원
- 총 금액
- 1,007,149 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Non-Contact
Cable Length:1.8 m
Cable Type:Pigtail
Compensated Temperature, Max:60 °C
Compensated Temperature, Min:0 °C
Correction Factors:Mild steel 1.0;Stainless steel 0.75;Brass 0.50;Aluminum 0.40;Copper 0.35
Electrical Connection:Pigtail Leads
Electrical Output:1 to 9 Vdc
Enclosure Ratings:IP67
Frequency Response:Switching Frequency: dc to 1000 Hz (-3 dB)
Housing Diameter:12 mm
Housing Length:51 mm
Housing Material:Nickel-plated Brass
Locknut Width:17 mm
Measurement, Max:2 mm
Measurement, Min:1 mm
Process Connection Size:12 mm
Process Connection Type:Metric
Repeatability:±10 µm
Supply Current:20 mA
Supply Power Note:14 to 30 Vdc @20mA unregulated, reverse polarity and short circuit protected
Supply Voltage:14 to 30 Vdc
Thermal Effects:1μm/°C/mm
