DwyerOmegaLD400

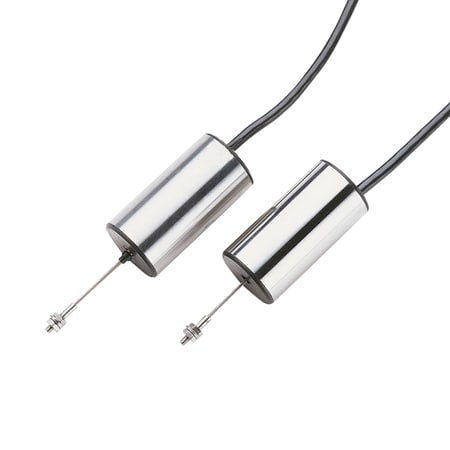

LD400-2.5
-2.5 to 2.5 mm, 75 mV/V/mm Output
- 가격
- 1,266,900 원
- VAT 10%
- 126,690 원
- 총 금액
- 1,393,590 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Provided with a transducer output impedance of 2.4 kΩ into a calibration load of 20 kΩ at 20°C (68°F); variations in these parameters will change performance
Additional Features 1:Miniature DC Displacement
Bandwidth:50 Hz (-3 dB)
Cable Length:2 m
Cable Type:Insulated Shielded
Compensated Temperature, Max:80 °C
Compensated Temperature, Min:-20 °C
Core Material:Ni/Fe—Radio Metal 50
Core Weight:1 g
Electrical Connection:Pigtail Leads
Electrical Output:DC
Enclosure Ratings:IP67
Housing Diameter:21.5 mm
Housing Length:37 mm
Housing Material:400 Stainless Steel
Input Current:10 mA
Input_Current Note:energizing current at 10 vdc
Linearity Error:0.3% FS
Measurement, Max:2.5 mm
Measurement, Min:-2.5 mm
Operating Temperature, Max:80 °C
Operating Temperature, Min:-20 °C
Output Ripple:<1%
Response Time:5 ms
Sensitivity:75 mV/V/mm
Supply Voltage:10 to 24 Vdc
Thermal Zero Effect:<0.01% FC/°C
Weight:26 g
