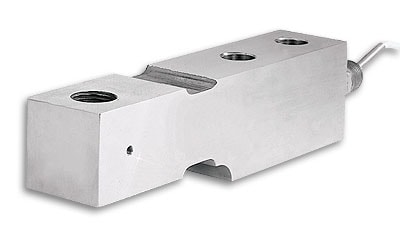

DwyerOmegaLCM501-LCM511

LCM501-5K

5,000 kgf, ± 0.03%, Linearity, 3 mV/V Output, Cable

가격: 1,631,570 원

VAT 10%: 163,157 원

총 금액: 1,794,727 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

5-Point Calibration:0%, 50%, 100%, 50%, 0% (in Compression)

Base Plate:MBP-15

Cable Length:15 ft

Calibration Option:5 POINT NIST

Electrical Connection:Cable

Electrical Output:3 mV/V

Enclosure Ratings:IP65

Force Type:Compression

Full Scale Deflection:0.02 in

Height:38 mm

Hysteresis:± 0.05%

Input Resistance:360 Ω min

Interchangeability:0.0025

Length:197 mm

Linearity:± 0.03%

Load Cell Capacity:5000 kgf

Load Cell Type:Bending Beam

Materials:17-4 PH Stainless Steel, Stainless Steel

Operating Temperature, Max:82 °C

Operating Temperature, Min:-34 °C

Output Resistance:350 ± 10 Ω

Overload, Max:300% FS

Process Temperature, Max:71 °C

Process Temperature, Min:16 °C

Repeatability:± 0.02%

Safe Overload:150% FS

Supply Power Note:10 Vdc, 15 Vdc maximum

Supply Voltage:10 to 15 Vdc

Thermal Span Effect:± 0.0018% FSO/°C

Thermal Zero Effect:± 0.0018% FSO/°C

Weight:2.3 kg

Width:38 mm

Wiring/Connector Table:Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Zero/Balance Error:± 1%
