DwyerOmegaLCM412-IS
LCM412-7.5K5BC2IS

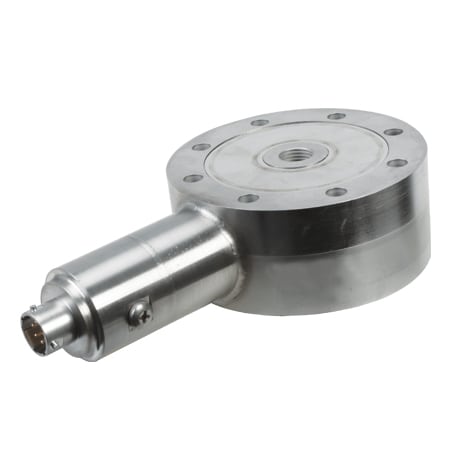

INTRINSICALLY SAFE LOW PROFILE LOAD CELLS - Metric Models
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
5-Point Calibration:0%, 50%, 100%, 50%, 0%
Additional Features 1:Potentiometers Standard
Approvals:FM
Base Plate:LCM412-TP350
Calibration Option:5 POINT NIST
Electrical Connection:M12 4 pin Female
Electrical Output:4-12-20 mA
Electrical Output Note:Two Directions Output
Force Type:Compression
Height:50 mm
Hysteresis:0.001
Input Resistance:350 ± 10 Ω
Interchangeability:0.0025
Linearity:± 0.1%
Load Cell Capacity:7500 kgf
Load Cell Type:Pancake
Materials:Stainless Steel
Non-Linearity:0.001
Operating Temperature, Max:75 °C
Operating Temperature, Min:-40 °C
Outer Diameter:102 mm
Overload, Max:300% FS
Process Temperature, Max:71 °C
Process Temperature, Min:16 °C
Repeatability:0.0005
Safe Overload:150% FS
Supply Voltage:10 to 28 Vdc
Thermal Span Effect:± 0.009% rdg/°C
Thermal Zero Effect:± 0.009% FSO/°C
Through Hole Thread:M24 x 2.0
Wiring/Connector Table:Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case
Zero/Balance Error:4 mA +10%, -2% adjustable
