DwyerOmegaLCM105-LCM115

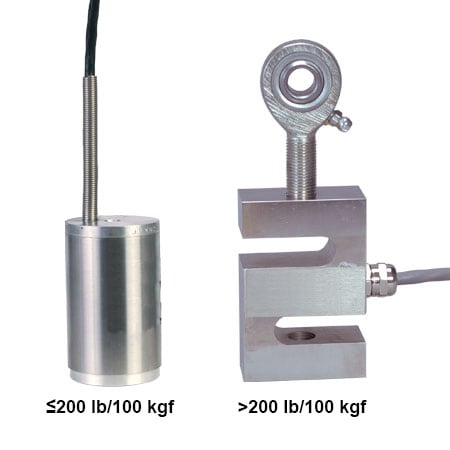

LCM105-500

500 kgf, ± 0.03%, Linearity, 3 mV/V Output, Cable

가격: 1,092,040 원

VAT 10%: 109,204 원

총 금액: 1,201,244 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Bridge Resistance:350 ± 5 Ω

Cable Length:30 ft

Calibration Option:5 POINT NIST

Electrical Connection:Cable

Electrical Output:3 mV/V

Enclosure Ratings:IP65

End Rod:MREC-M12M

Force Type:Compression, Tension

Full Scale Deflection:0.02 in

Height:51 mm

Hysteresis:± 0.02%

Length:76 mm

Linearity:± 0.03%

Load Button:MLBC-M12

Load Cell Capacity:500 kgf

Load Cell Type:S-beam

Materials:Aluminum

Operating Temperature, Max:93 °C

Operating Temperature, Min:-40 °C

Overload, Max:300% FS

Process Temperature, Max:71 °C

Process Temperature, Min:17 °C

Repeatability:± 0.01%

Safe Overload:150% FS

Supply Power Note:10 Vdc, 15 Vdc maximum

Supply Voltage:10 Vdc

Thermal Span Effect:0.002% rdg/°C

Thermal Zero Effect:0.002% FSO/°C

Weight:0.5 kg

Width:25 mm

Wire Gauge:20 AWG

Wiring/Connector Table:Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Zero/Balance Error:± 1%
