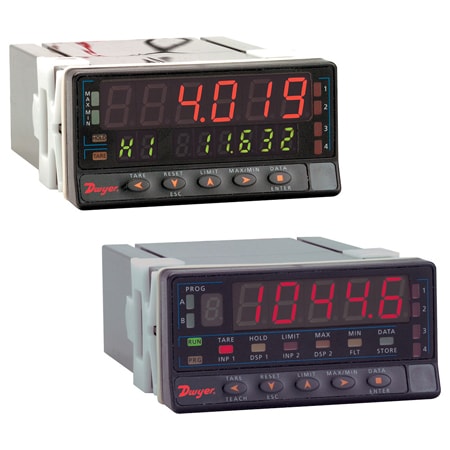

DwyerOmegaSeries-LCI508-LCI608
LCI508-00
LCI508-00 4 DIGIT UNIV 120/240
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 16 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.1 % + 2 digits
Current Input Range:± 20 mA dc
Cutout Dimensions:3.6 x 1.8 in
Decimal Selection:User Selectable
Display Note:Main display: -9999/9999, 5 red digits, 7 segments
Display Range:-9999 to 9999
Display Segment Color:Red
Enclosure Ratings:IP66, NEMA Type 4X
Excitation Voltage:2.2 Vdc
Excitation Voltage Note:2.2 V @ 30 mA not adjustable. 24 V @ 30 mA not regulated. 5 V ± 100 mV @ 120 mA with fine adjust (50ppm/ºC). 10 V ± 10 mV @ 120 mA with fine adjust (50ppm/°C)
Impedance:Voltage: 1MΩ, 100MΩ; Current: 11.8Ω; Load Cell: 100MΩ; Potentiometer: >10 MΩ
Input Type:Voltage, Current, Load Cell, Potentiometer
Load Cell Input Range:± 30 mVdc, ± 60 mVdc, ± 120 mVdc, ± 300 mVdc, ± 500 mVdc
Materials:Polycarbonate
Number of Digits:5
Number of Display Segments:7
Operating Temperature, Max:140 °F
Operating Temperature, Min:14 °F
Potentiometer Input Range:120 Ω
Power Consumption:5 W
Sampling Rate:555 Hz (555 updates/second)
Storage Temperature, Max:185 °F
Storage Temperature, Min:-13 °F
Supply Power Note:115/230VAC 50/60Hz
Supply Power Type:AC
Supply Voltage:115 / 230 Vac
Temperature Coefficient:50 ppm/°C
Voltage Input Range:± 5 V, ± 10 V, 0 to 1 V
Warm Up Time:10 min
Weight:21 oz
