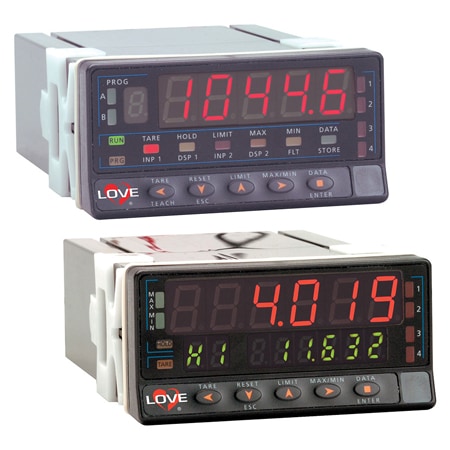

DwyerOmegaSeries-LCI308-LCI408
LCI408-00
LCI408-00 DPM LC IN 120/240
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 22 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.1 % + 2 digits
Compliance:CE
Display Note:5 digit, 7 segment, 14 mm red with a fixed decimal point. 14 LEDs (programming & control)
Display Segment Color:Red
Display Segment Height:14 mm (0.6 in)
Display Type:LED
Enclosure Ratings:IP66, NEMA Type 4X
Frequency Input Range:0.1 to 25,000 Hz
Impedance:Voltage: 1 MΩ; Current: 12.1Ω; Load cell: 100 MΩ for 300 mV, 1 MW for 30 mV
Input Note:Voltage: Process (Includes excitation power supply): ± 10V, Scalable Units from -99999 to +99999; ± 20mV, Scalable Units from -1999 to +19999 Digital - Frequency/Counter (Includes excitation power supply) 0.1 to 25,000 Hz Load Cell (includes excitation power supply): ± 30mVDC
Input Type:Universal -Thermocouple, RTD, Voltage, Frequency/Counter, Load Cell
Load Cell Input Range:± 30 mVdc
Number of Digits:5
Number of Display Segments:7
Potentiometer Resolution:1.0E-5
Power Consumption:3 W max
RTD Accuracy:± 0.2%
RTD Input Range:100 Ohm Plt. 0.00385 DIN RTD: -328 to 1472.0 °F, 100 Ohm Plt. 0.00392 NIST RTD: -328 to 1607 °F
Supply Power Note:115/230 Vac 50/60 Hz ± 10%
Supply Power Type:AC
Supply Voltage:115 / 230 Vac
Temperature Sensor Type:RTD or Thermocouple
Thermocouple Accuracy:Type J, K, T, E: ± 0.4%; Type R, S: ± 0.05%
Thermocouple Input Range:Type J: -58.0 to +1472.0 °F, Type K: 58.0 to +2282.0 °F, Type T: -328.0 to +752.0 °F, Type R: +32.0 to +3182.0 °F, Type S: -58.0 to +3182.0 °F, Type E: -58.0 to +1832.0 °F
Voltage Input Range:± 10 V, ± 20 mV
Weight:8 oz
