DwyerOmegaSeries-LCI132
LCI132-11

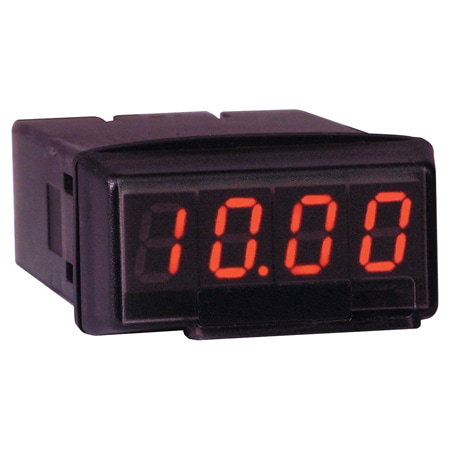

LCI132-11 4 DIGIT VAR 24/48VAC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 16 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.4 % + 4 digits
Current Input Range:1 A ac, -1.999 to 5 A dc
Current Resolution:1 mA
Display Note:Range: -1999 to 9999 (DC) 0 to 9999 (AC), Type: 4 red digits 10 mm, Reading Rate: 4/s, Overflow Indication: OVR
Display Range:DC: -1999 to 9999 , AC: 0 to 9999
Display Segment Color:Red
Display Segment Height:10 mm (0.4 in)
Enclosure Ratings:IP66, NEMA Type 4X
Impedance:Volts: 3 M Ω (106), Amps: 12 m Ω (10-3)
Input Type:Voltage, Current
Number of Digits:4
Operating Temperature, Max:140 °F
Operating Temperature, Min:14 °F
Relative Humidity:<95% @ 40°C, Non-Condensed
Sampling Rate:4 Hz (4 updates/second)
Storage Temperature, Max:185 °F
Storage Temperature, Min:-13 °F
Supply Power Type:AC
Supply Voltage:24/48 Vac
Temperature Coefficient:100 ppm/°C
Voltage Input Range:± 100 Vac, 600 Vac, -200 to +600 Vdc
Voltage Resolution:0.1 V
Warm Up Time:5 min
