DwyerOmegaLC703

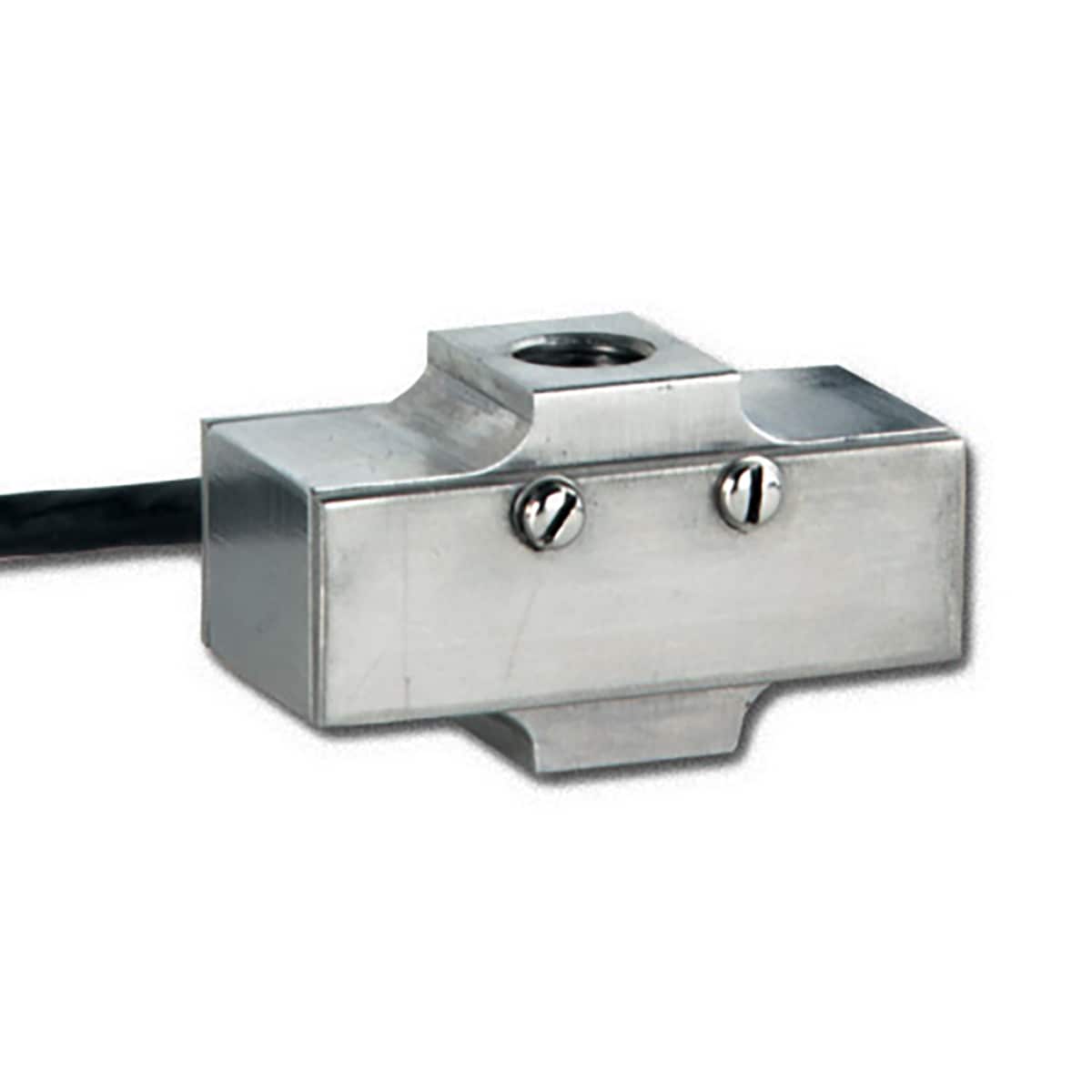

LC703-100
100 lbf, ± 0.15%, Linearity, 2 mV/V Output, Cable
- 가격
- 965,440 원
- VAT 10%
- 96,544 원
- 총 금액
- 1,061,984 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
5-Point Calibration:0%, 50%, 100%, 50%, 0%
Cable Length:12 ft
Calibration Option:5 POINT NIST
Electrical Connection:Cable
Electrical Output:2 mV/V
Enclosure Ratings:IP54
Force Type:Compression, Tension
Full Scale Deflection:0.003 in
Height:0.75 in
Hysteresis:± 0.15%
Input Resistance:360 Ω min
Length:1.62 in
Linearity:± 0.15%
Load Cell Capacity:100 lbF
Load Cell Type:Pancake
Materials:Aluminum
Operating Temperature, Max:82 °C
Operating Temperature, Min:-40 °C
Output Resistance:350 ± 10 Ω
Overload, Max:300% FS
Process Temperature, Max:71 °C
Process Temperature, Min:16 °C
Repeatability:± 0.05%
Safe Overload:150% FS
Supply Power Note:10 Vdc, 15 Vdc maximum
Supply Voltage:10 Vdc
Thermal Span Effect:± 0.005% FSO/°F
Thermal Zero Effect:± 0.005% FSO/°F
Through Hole Thread:1/4"-28 UNF
Width:0.66 in
Wiring/Connector Table:Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Zero/Balance Error:± 1%
