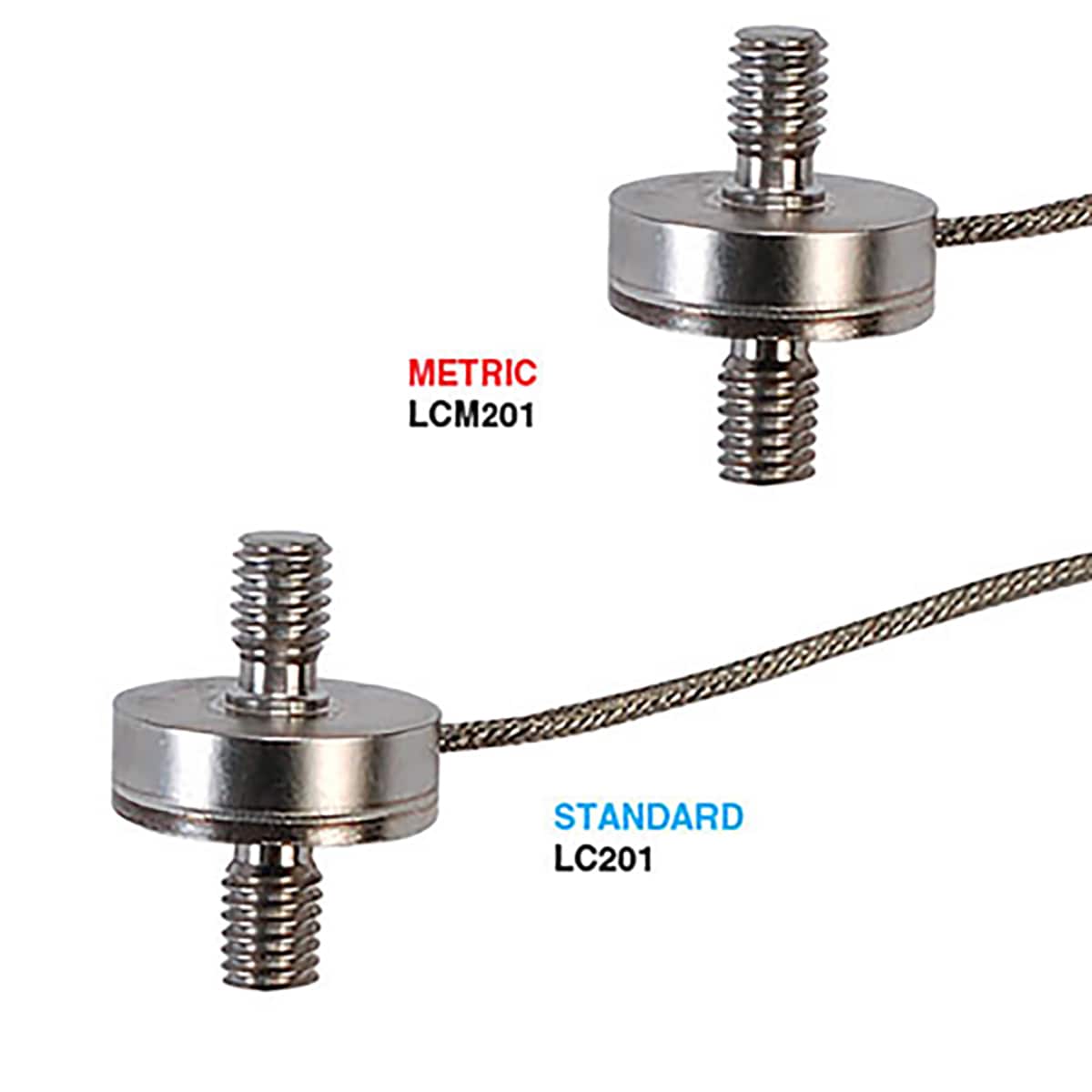

DwyerOmegaLC201
LC201-25
25 lbf, ± 1.0%, Linearity, 2 mV/V Output, Cable
- 가격
- 1,715,740 원
- VAT 10%
- 171,574 원
- 총 금액
- 1,887,314 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
5-Point Calibration:0%, 50%, 100%, 50%, 0%
Accuracy:± 1 %
Cable Length:5 ft
Calibration Option:5 POINT NIST
Electrical Connection:Cable
Electrical Output:2 mV/V
Enclosure Ratings:IP54
End Rod:REC-014F
Force Type:Compression, Tension
Height:0.25 in
Hysteresis:± 1.0%
Input Resistance:360 Ω min
Linearity:± 1.0%
Load Cell Capacity:25 lbF
Load Cell Type:In-line
Materials:Stainless Steel
Operating Temperature, Max:121 °C
Operating Temperature, Min:-54 °C
Outer Diameter:0.75 in
Output Resistance:350 ± 10 Ω
Overload, Max:300% FS
Process Temperature, Max:71 °C
Process Temperature, Min:16 °C
Repeatability:± 1.0%
Safe Overload:150% FS
Supply Power Note:10 Vdc, 15 Vdc maximum
Supply Voltage:10 Vdc
Thermal Span Effect:0.018% FSO/°C
Thermal Zero Effect:0.018% FSO/°C
Wiring/Connector Table:Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Zero/Balance Error:± 2%
