DwyerOmegaSeries-L8
L8-WP

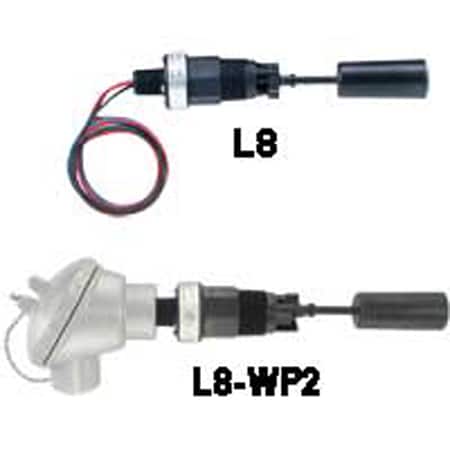

SERIES L8 FLOTECT® LIQUID LEVEL SWITCH
- 가격
- 252,490 원
- VAT 10%
- 25,249 원
- 총 금액
- 277,739 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Applications:Chemical Refineries, Chemicals
Cable Material:N/A
Electrical Connection:1/2 in NPT male Conduit with Wire Leads
Materials, Wetted:316 Stainless Steel, Ceramic, Inconel, PPS
Media Compatibility:Clean process / cooling water, Compatible Liquids, Oils / lubricants, Organic solvents
Mounting Orientation:Horizontal with downward pointing index
Operating Temperature, Max:212 °F
Measurement Pressure Type:Gauge
Process Connection Size:1 in
Process Connection Type:NPT Male
Proof Pressure:Up to 150 psi
Series ID:Series-L8
Specific Gravity, Min:0.6
Switch Note:5 A @ 125/250 Vac, 5 A resistive, 3 A inductive @ 30 Vdc. MV option: 1 A @ 125 Vac, 1 A resistive, 0.5 A inductive @ 30 Vdc.
Switch Rating:30 VA: 0.14 A @ 220 Vac
Switch Type:SPDT Snap
Weight:5 oz
Wire Gauge:18 AWG
