DwyerOmegaKFH-2-Element90

KFH-6-120-D16-11L1M2S

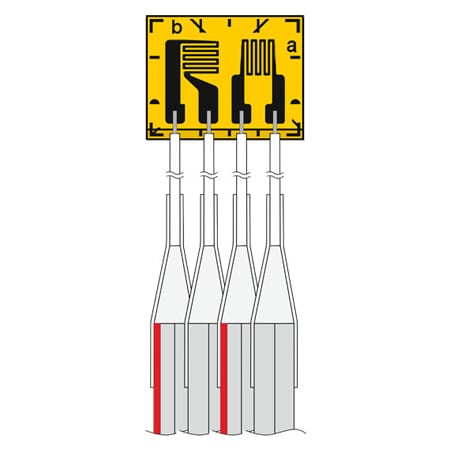

PRE-WIRED STRAIN GAGES, Linear Gages, X-Y Planar Rosettess (Tee Rosettes), 0°/45°/90° Planar Rosettess

가격: 606,730 원

VAT 10%: 60,673 원

총 금액: 667,403 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Pre Wired

Adhesive:SG496, SG401, TT300

Carrier Length:11 mm

Carrier Thickness:45 μm

Carrier Width:16 mm

Connection Note:PTFE wire, Ø - 0.051 mm², approximately 50 mm long, connected to AWG 28 ribbon cables (PVC insulated) through solder sleeves in 2- or 3-wire configurations

Electrical Connection:Wire Leads

Elongation:20000 µm/m to 25000 µm/m

Gauge Factor:2

Gauge Factor Tolerance:± 1 %

Grid Length:6 mm

Grid Style:Planar X-Y Pattern

Grid Thickness:5 μm

Grid Width:6.3 mm

Lead Length:1 m

Material Expansion Compensation:Steel

Materials:Constantan, Polyimide

Nominal Resistance:120 Ω

Operating Temperature, Max:155 °C

Operating Temperature, Min:-10 °C

Pack Size:10

Strain, Max:50,000 µm

Temperature Compensation:16 x 10-6/K

Temperature Compensation Note:α for aluminium: 23 x 10-6 /K(12.8 x 10-6/°F) α for plastic material: 65 x 10-6/K (36.1 x 10-6/°F) α for austenitic steel: 16 x 10-6/K (8.9 x 10-6/°F) α for titanium: 9 x 10-6/K (5.0 x 10-6/°F) α for molybdenum: 15.4 x 10-6/K (3.0 x 10-6/°F) α for quartz: 0.05 x 10-6/K (0.3 x 10-6/°F)

Tolerance:± 0.35 %

Voltage, Max:11 Vrms
