DwyerOmegaKFH-Rosette

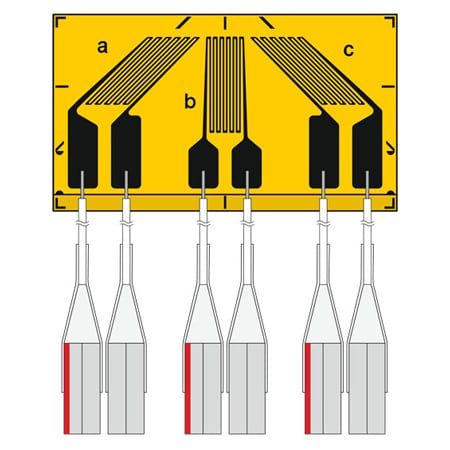

KFH-1.5-120-D17-11L1M2S
PRE-WIRED STRAIN GAGES, Linear Gages, X-Y Planar Rosettess (Tee Rosettes), 0°/45°/90° Planar Rosettess
- 가격
- 924,530 원
- VAT 10%
- 92,453 원
- 총 금액
- 1,016,983 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 15 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Pre-Wired
Carrier Length:5.8 mm
Carrier Thickness:45 μm
Carrier Width:10.2 mm
Electrical Connection:Wire Leads
Elongation:20000 µm/m to 25000 µm/m
Gauge Factor:2
Gauge Factor Tolerance:± 1 %
Grid Length:1.5 mm
Grid Style:0°/45°/90° Planar Rosettes
Grid Thickness:5 μm
Grid Width:1.5 mm
Lead Length:1 m
Material Expansion Compensation:Steel
Materials:Constantan, Polyimide
Mechanical Life:10⁷ cycles
Mechanical Life Note:>1 x 107 cycles at zero point variation ≤ 300 um/m, 5 x 106 cycles at zero point variation ≤ 30 um/m
Nominal Resistance:120 Ω
Operating Temperature, Max:155 °C
Operating Temperature, Min:-10 °C
Pack Size:10
Resistance Tolerance:±0.3%
Strain, Max:50,000 µm
Temperature Coefficient:16 x 10-6
Tolerance:±0.35
Voltage, Max:2.5 Vrms
