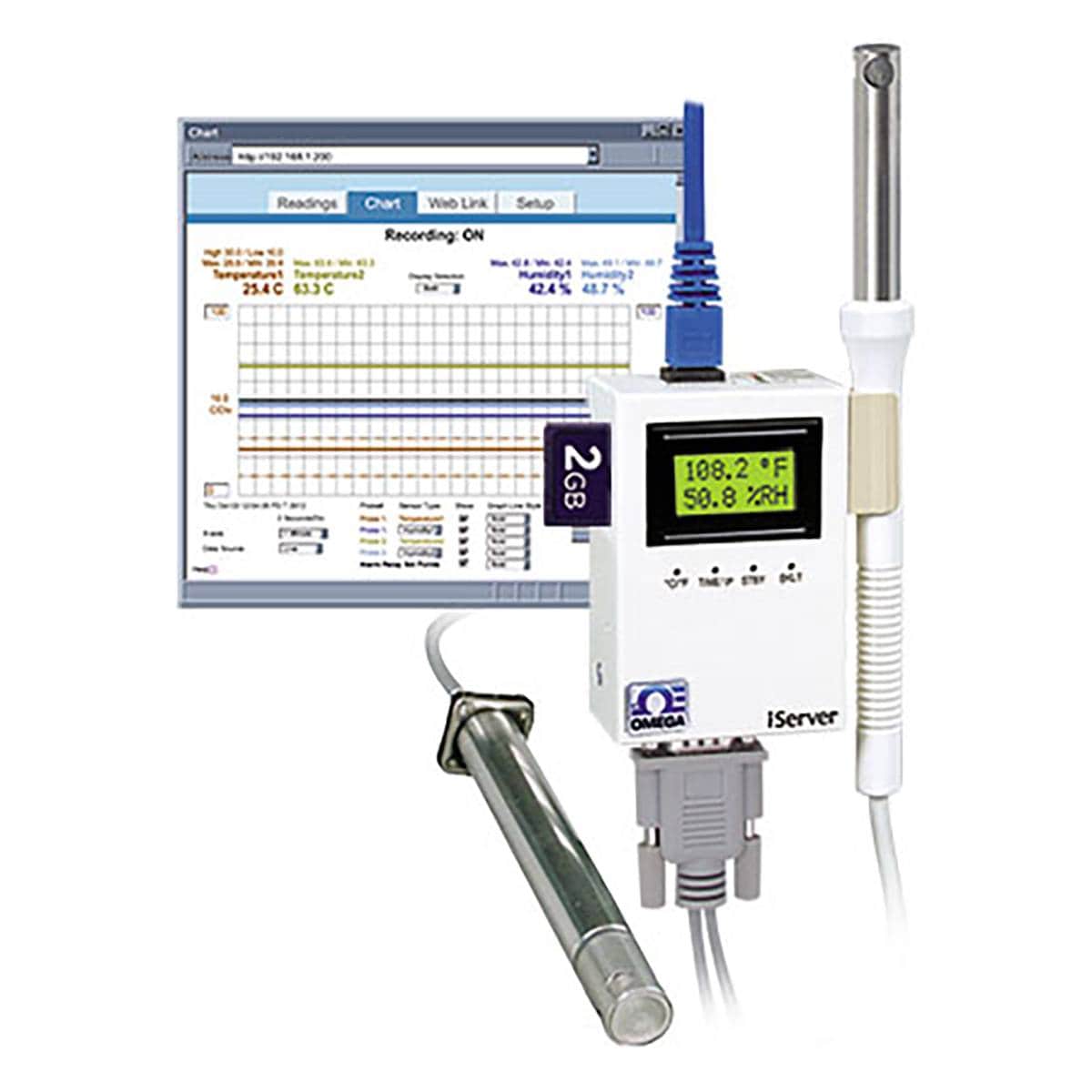

DwyerOmegaITHX-SD-Series

ITHX-SD

판매 가격: 가격 문의

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Brand:OMEGA Engineering

AC Adaptor Operating Temperature:0 to 40 °C

Accuracy Detail:Temperature Sensor Accuracy: Wand Probe: ± 0.5°C for 5° to 45°C, Up to ± 1°C for 0° to 5°C and 45° to 70°C, Relative Humidity Accuracy: ± 2.75% for 10 to 90%; ± 3% for 5 to 10% and 90 to 95%, ± 4% for 0 to 5% and 95 to 100%

Approvals:CE, FCC-B

Battery Operating Temperature:-18 to 55 °C

Battery Size and Type:Alkaline 9V

Battery life:Back-up Battery Life: up to 60 hr, with reading interval of 1 min

Buoyancy:Salt water: 0.69 oz Negative

Cable Length:6 in

Cable Temperature, Max:80 °C

Cable Temperature, Min:0 °C

Certifications:NIST Traceable Calibration

Configuration:Internal Web UI

Data Interface:Ethernet

Data Interface Note:Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Supported Protocols:TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

Display Note:16 digits, 6mm (0.23”)

Display Type:N/A

Electrical Connection:Sub-D Male Miniature Connector

Form factor:Wall Bracket Mount

Height:1.44 in

Hysteresis:± 1% RH

Input Type:External

Length:3.56 in

Logging Modes:Fixed interval

Materials:316 Stainless Steel, Stainless Steel

Measurement Type:Relative Humidity, Temperature

Non-Linearity:± 3%

Number of Measurements:2

Number of Relays:2

Operating Temperature Note:iServer Unit: 0 to 60°C Battery: -18 to 55°C ac Power Adapter: 0 to 40°C Wand Cable: 0 to 80°C

Operating Temperature, Max:60 °C

Operating Temperature, Min:0 °C

Probe Diameter:0.75 in

Probe Length:8 in

Probe Type:Wand Probe

RH Measurement Range:0 to 100% RH

RH Resolution:0.1%, 12 bit

Relative Humidity Accuracy:± 2.75% RH

Relay Output:1.5 A @ 30 Vdc

Repeatability:± 0.1%

Response Time:Temperature: 5 to 30 sec, RH: 8 sec

Samples,Max:85k Samples, Interval 1 sec

Software:Compatible with Windows operating systems, Firmware upgrade from Ethernet OPC Server, iConnect: Configuration software for the Ethernet interface, iLog: Macro for automatic data logging in MS Exce

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Current:0.5 A

Supply Power Note:AC Power Adapter (included) , Nominal Output: 9 Vdc @ 0.5 A , Input: 100 to 240 Vac, 50/60Hz, Back-up Battery: 9 Vdc, alkaline

Supply Power Type:DC/Battery

Supply Voltage:9 to 12 Vdc

Temperature Accuracy:± 0.5 °C

Temperature Measurement, Max:60 °C

Temperature Measurement, Min:0 °C

Temperature Repeatability:± 0.1 °C

Temperature Resolution:0.1 °C, 14 bit

Weight:0.86 lb
