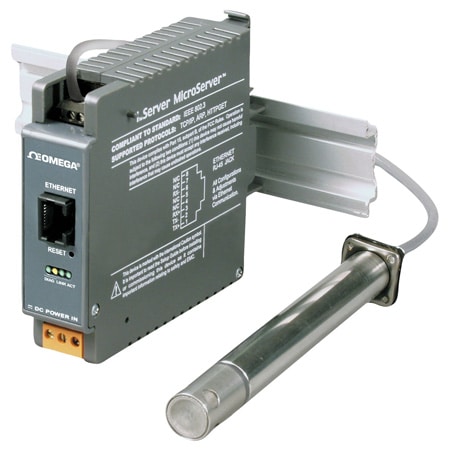

DwyerOmegaITHX-D3-Series
ITHX-D3
Temperature and Humidity Virtual Chart Recorder
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:Temperature: ± 0.5°C for 5 to 45°C; up to ± 1.5°C for -40 to 5°C and 45 to 124°C, Accuracy/Range at 25°C: Non-Condensing: 10 to 90%: 2.75% RH, 5 to 10% and 90 to 95%: ± 3%, 0 to 5% and 95 to 100%: ± 4%
Approvals:CE, FCC-B
Cable Length:10 ft
Cable Temperature, Max:125 °C
Cable Temperature, Min:-40 °C
Configuration:Internal Web UI
Data Interface:Ethernet
Data Interface Note:Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Supported Protocols:TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet
Electrical Connection:Stripped Leads
Form factor:DIN rail mount
Height:0.99 in
Hysteresis:± 1% RH
Input Type:External
Length:3.54 in
Logging Modes:Fixed interval
Measurement Type:Relative Humidity, Temperature
Non-Linearity:± 3%
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Probe Diameter:0.63 in
Probe Length:5 in
Probe Style:Industrial Probe
RH Measurement Range:0 to 100% RH
Relative Humidity Accuracy:± 1.5 °C
Repeatability:± 0.1%
Response Time:Temperature: 5 to 30 sec, RH: 8 sec
Response Time Note:Temperature: 5 to 30 seconds, tau 63%, RH: 8 seconds, tau 63%
Sensor Type:Screw Terminal
Software:OPC Server; macro for data logging in Excel program; compatible with Windows® operating systems
Storage Temperature, Max:125 °C
Storage Temperature, Min:-40 °C
Supply Power Note:10 to 32 Vdc switching power supply (sold separately)
Supply Power Type:DC
Supply Voltage:10 to 32 Vdc
Temperature Accuracy:± 0.5 °C
Temperature Measurement, Max:124 °C
Temperature Measurement, Min:-40 °C
Temperature Repeatability:± 0.1 °C
Temperature Resolution:0.1 °C
Weight:0.68 lb
Width:4.53 in
