DwyerOmegaiNET-100-200-Series

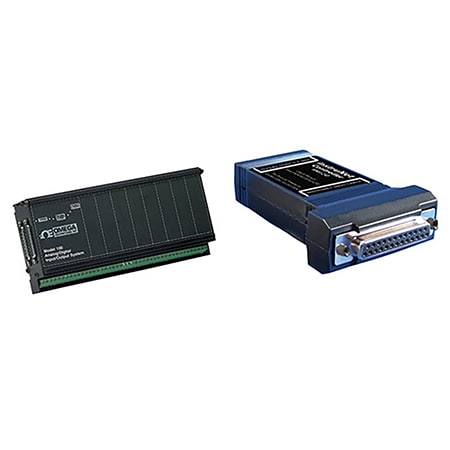

INET-100B
- 가격
- 3,047,370 원
- VAT 10%
- 304,737 원
- 총 금액
- 3,352,107 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.4 %
Analog I/O Note:Analog Inputs:16 single-ended/8 differential, Resolution: 14-bit, System Throughput: 166K samples/s, A/D Conversion Time: 4 µs min, Signal-to-Noise Ratio: 78 dB, Linearity: Differential ±1.5 LSB; integral ±2 LSB, Input Overvoltage Protection: ±15V, Input Impedance: >22 MΩ, 3pf, Common-Mode Voltage:±5V min (CMR ±80 dB), Gain and Offset Drift: ±5 ppm/°C of 5V FSR; offset self-calibrated to 0 Digital I/O Number: 8 non-latching inputs and 8 latching outputs at 8 bidirectional screw terminals
CMRR:±80 dB
Common Mode Voltage:±5V
Conversion Rate:4 µs min
Digital Input:Digital: Low = –12 to 1.0 Vdc (VIL)
Digital Output:Digital: VOH = 2V min to 5V max, IOH = -0.5 mA max, IOL = 500 mA max, VO =1.7V, IOL = 50 mA max, VO = 0.7V
Drift:Grain and Offset: Input: ±5 ppm/°C of 5V FSR; offset self-calibrated to 0, Output: ±10 ppm/°C of 5V FSR and ±5 µV/°C offset drift
Electrical Connection:Screw Terminal and BNC
Excitation:N/A
Height:45.72 mm
Impedance Input:>22 MΩ, 3pf
Input Capacitance:3 pf
Input Type:Voltage, Thermocouple, RTD, Thermistor, Digital
Length:228.6 mm
Linearity:Differential ±1.5 LSB; integral ±2 LSB
Number of Channels, Input:Analog: 8 DIFF/16 SE, Digital: 8
Number of Channels, Output:Analog: 8, Digital: 8
Output Resolution:Analog: 8-bits
Output Settling Time:4 µs (to ±2 LSB, ±5V step)
Output Signal:Voltage, Digital
Protection:Input Protection: ±15V
Sampling Rate:166 kHz (166,000 updates/second)
Sensor Type:Thermocouple Type J, K, T, E, R, S, B, N, C, G, D
Signal/Noise Ratio:78 dB
Temperature Measurement Range:TEMP LABEL 3 To be Updated
Voltage Measurement Range:±5V, ±0.6V, ±80 mV, ±10 mV
Width:106.68 mm
