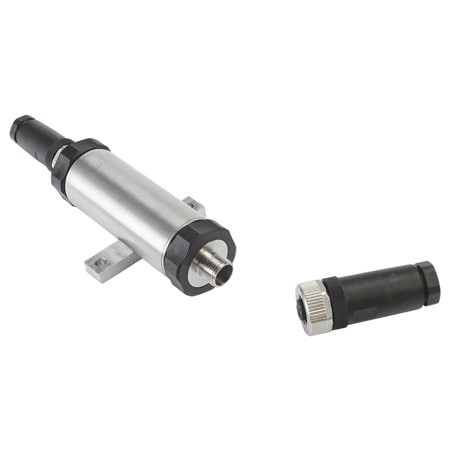

DwyerOmegaIN-UVI-Bridge-Amplifier

IN-UVI

Wheatstone Bridge In-Line Amplifier

가격: 3,875,180 원

VAT 10%: 387,518 원

총 금액: 4,262,698 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Approvals:CE

Bridge Resistance:350 to 5000 Ω

Calibration Note:Field Installed Shunt Calibration resistor with remote activation for bridge calibration

Capacitance:0.022 µF

EMC:<0.15% of FS per EN61326-1 (industrial)

Electrical Output:4 to 20 mA, ± 5 V, ± 10 V @ 2 mA

Enclosure Ratings:IP65

Height:34.8 mm

Input Noise:10 mV peak to peak @ 3 mV/V voltage mode (10 Vdc) 20 uA peak to peak current mode

Input Range:90 mA, 0.5 mV/V to 4 mV/V in 0.5 steps

Input Range Note:Current: 90 mA maximum (must be capable of supplying 200 mA), Sensor Input: 0.5 mV/V to 4 mV/V in 0.5 steps

Input Type:Current, Signal

Isolation:100 MΩ @ 500 Vdc

Length:134.8 mm

Linearity:0.0001

Load Resistance:700 Ω at 20 mA

Long Term Stability:0.1% of FS/year

Operating Temperature, Max:60 °C

Operating Temperature, Min:-20 °C

Output Detail:Current: 4 to 20 mA, 12 mA zero ± 8 mA outputs field programmable, Voltage: ± 5 volts, ± 10 volts at 2 mA maximum

Output Resistance:60 Ω

Output Signal:Current, Voltage

Protection:Short Circuit Protection: Yes +output to -output

Response Time:200 µs

Response Time Note:200 µs (0 to 63%)

Sensitivity:Bridge : 1 to 8 mV/V @ 5 Vdc EXC, 0.5 to 4 mV/V for 10 Vdc EXC

Sensor Excitation:5 or 10 Vdc field programmable; 30 mA @ 10 Vdc

Span Adjustment:± 20 % fine ± 40 % coarse

Supply Power:22 to 32 Vdc

Supply Power Note:22 to 32 Vdc isolated from output

Supply Power Type:DC

Thermal Span Effect:0.0025%/°F

Thermal Zero Effect:0.001%/°F

Trim Pot Access:Behind connector endcaps

Width:31.2 mm

Zero Setting Adjustable Range:± 30%
