DwyerOmegaIN-081

IN-081/4/070/50/0

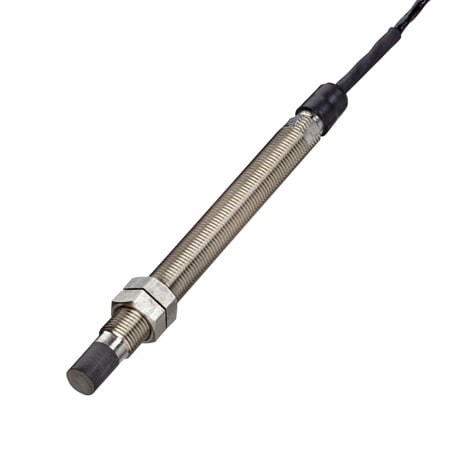

Integrated oscillator, 1.5 mm measuring range, built-in driver electronic

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Applications:Rotor Speed, Shaft Displacement, Shaft Vibration

Cable Length:5 m

Cable Type:Insulated Shielded

Electrical Output:0 to Ub + 2 V

Enclosure Ratings:IP54

Housing Diameter:0.334 in

Housing Length:2.76 in

Linearity Error:±2%

Measurement Note:Eddy current Mesurment Relative Shaft Vibration, Relative Shaft Displacement

Measurement, Max:1.5 mm

Measurement, Min:0 mm

Operating Temperature, Max:110 °C

Operating Temperature, Min:0 °C

Output Detail:Signal-Voltage : USIG = UB + 2 V;Signal current : Imax = 15 mA;Noise : < 1 mVss ( ... 10 kHz);Source resistance, dynamic : < 5 Ω;RLoad : > 1 k Ω;

Power Consumption:20 mA

Sensitivity:-8 mV/μm

Sensor Length:70 mm

Storage Temperature, Max:70 °C

Storage Temperature, Min:-20 °C

Supply Voltage:-18 to -30 Vdc

Thermal Effect on Span error, Max:< ± 5 % at room temperature + 22 °C < ± 10 % in operating temperature range

Transducer Type:Displacement Measurement

Weight:120 g
