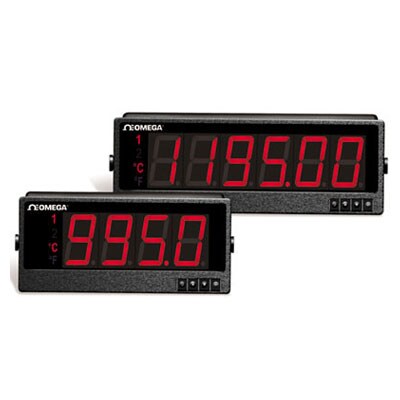

DwyerOmegaiLD-DP
ILD44-UTP
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
A/D Conversion:Dual slope
Accuracy:± 0.5 °C
Accuracy Detail:±0.5°C temperature; 0.03% rdg
Common Mode Rejection:120 dB
Current Measurement Range:0 to 20 mA
Decimal Selection:0, 0,001, 0,01, 0,1
Digital Filter:Programmable
Display Size:102 mm (4 in)
Display Type:4 Digit Single LED
Display Type Note:4-digit, 7-segment LED 57.2 mm (2.25") or 101.6 mm (4.00") red, green and amber programmable colors for process variable, set point and temperature units
Enclosure Ratings:NEMA Type 1
Excitation Voltage Note:Optional in Place of Communication
Impedance Input:10 MΩ for 100 mV, 1 MΩ for 1 or 10 Vdc
Input Configuration:Single-ended
Input Type:Thermocouple, RTD, Thermistor, Current, Voltage
Length:480 mm
Linearization Points:None
Normal Mode Rejection:60 dB
Number of Inputs:1
Offset Adjustment:-1999 to +9999
Operating Temperature, Max:40 °C
Operating Temperature, Min:0 °C
Polarity:Unipolar
Power Consumption:22.5 W
RTD Type:100/500/1000 Ω Pt sensor, 2-, 3- or 4-wire; α= 0.00385 or 0.00392
Reading Rate:3 samples/sec
Relative Humidity:90% RH non-condensing
Resolution:1°/0.1°; 10 µV process
Sampling Rate:3 Hz (3 updates/second)
Sensor/Transmitter Power:24 Vdc @ 25 mA
Set Point Adjustment:-1999 to 9999 counts
Span Adjustment:0.001 to 9999 counts, programmable
Step Response:0.7 sec for 99.9%
Supply Power Note:100 to 240 Vac ±10%, 50/60 Hz 22.5 W
Supply Power Type:AC
Supply Voltage:100 to 240 Vac
Temperature Stability:RTD: 0.04°C/°C ;Thermocouple @ 25°C (77°F): 0.05°C/°C, cold junction compensation ;Process: 50 ppm/°C ;
Thermocouple Lead Resistance, Max:100 Ω
Thermocouple Type:J, K, T, E, R, S, B, C, N, L
Voltage Measurement Range:0 to 100 mV, 0 to 1 V, 0 to 10 Vdc
Warm-Up to Rated Accuracy:60 min
Width:211 mm
