DwyerOmegaIF-002-Interface

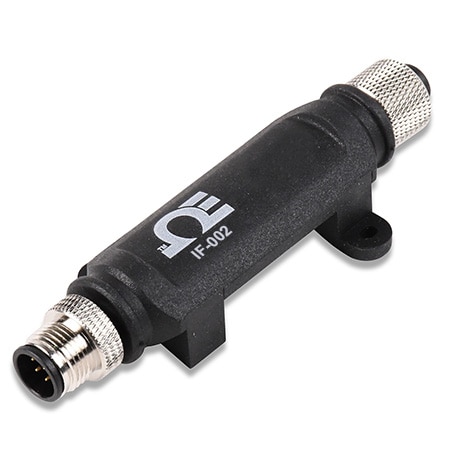

IF-002

Modbus Compatible Smart Probe Interface to RS485 serial

판매 가격: 가격 문의

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 101 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Brand:OMEGA Engineering

Approvals:CE

Baud Rate:9600 to 115200

Data Format:7 data bits: even parity: 1 stop bit, 7 data bits: even parity: 2 stop bit, 7 data bits: mark parity: 1 stop bit, 7 data bits: mark parity: 2 stop bit, 7 data bits: no parity: 1 stop bit, 7 data bits: no parity: 2 stop bit, 7 data bits: odd parity: 1 stop bit, 7 data bits: odd parity: 2 stop bit, 8 data bits: even parity: 1 stop bit, 8 data bits: even parity: 2 stop bit, 8 data bits: mark parity: 1 stop bit, 8 data bits: mark parity: 2 stop bit, 8 data bits:no parity:1 stop bit, 8 data bits: no parity: 2 stop bits, 8 data bits: odd parity: 1 stop bit, 8 data bits: odd parity: 2 stop bit

Data Interface:Modbus

Electrical Connection:M12 5-pin B code connector

Electrical Output:100 mA max @ 3.0 ±5%

Enclosure Ratings:IP67

Length:3.8 in

Number of Channels:1

Operating Temperature, Max:85 °C

Operating Temperature, Min:-40 °C

Parity:Even, Odd, Mark, None

Software Compatibility:Windows 10 OS or higher. Compatible with OEG, SYNC configuration software,Omega Link Cloud, and Modbus Networks

Supply Power Note:Voltage: 5VDC - 36 VDC

Supply Power Type:DC
