DwyerOmegaI-7520-Series
I-7520

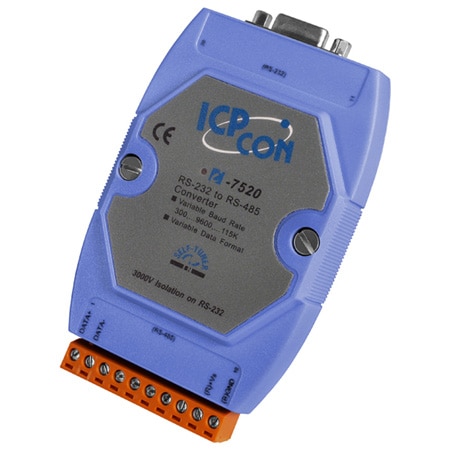

RS-232 to RS-485 Converter
- 가격
- 272,080 원
- VAT 10%
- 27,208 원
- 총 금액
- 299,288 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Baud Rate:300 to 115200
Baud Rate Note:Max. 1,200 m for at speed 9.6 kbps; Max. 400 m at 115.2 kbps
Cable Note:Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change
Cable Type:2P Twisted-Pair Cable, 4P Twisted-Pair Cable
Compliance:UL94-V0
Data Interface:RS232, RS485
Data Interface Note:RS232: TxD, RxD, GND, RS485: Data+, Data-
Height:4.8 in
Input Cable Connector Type:RS232: 9 - Pin Female D-Sub
Input Type:RS232
Isolation:Three Way Protection: 3000 Vdc
LED Indicators:Power/Communication LED
Length:1.5 in
Materials:ABS
Mounting:DIN-Rail Mounting
Number of Channels:1
Operating Temperature, Max:75 °C
Operating Temperature, Min:-25 °C
Output Cable Connector Type:RS485: 2 Terminal Block 10-Pins, Removable
Power Consumption:1.2 W
Relative Humidity:10 to 90% RH, Non-Condensing
Self Tuner:Yes, Asic Inside
Storage Temperature, Max:75 °C
Storage Temperature, Min:-30 °C
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Supported Devices:256 (Without repeater)
Transmission Distance:4000 ft
Width:2.83 in
