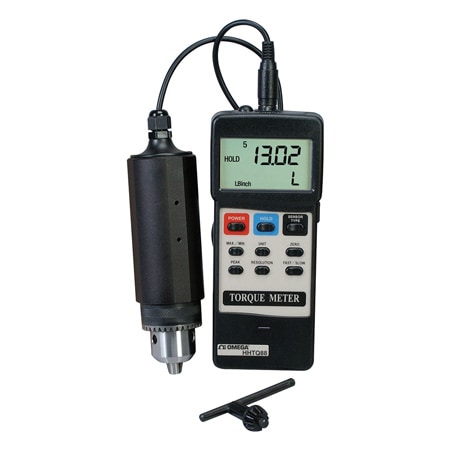

DwyerOmegaHHTQ88-series
HHTQ88
0 to 15 kgf-cm
- 가격
- 2,503,230 원
- VAT 10%
- 250,323 원
- 총 금액
- 2,753,553 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1.5 %
Accuracy Class:> 0.25%
Accuracy Detail:±1.5% FS + 5 digits, 23 ±5°C (73 ±9°F), includes linearity, repeatability and hysteresis
Battery Size and Type:Alkaline 9V
Cable Length:3.3 ft
Data Interface:RS232
Electrical Connection:Cable
Functions:Auto-off (after about 20 min), reading hold, min and maximum
Hysteresis:±1.5%
Linearity:±1.5%
Meter Weight:225 g
Mounting:Handheld
Operating Humidity:0 to 80% RH
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Repeatability:±1.5%
Rotational Speed:N/A
Safe Overload:150 %
Sensor Diameter:48 mm
Sensor Length:160 mm
Sensor Probe Weight:665 g
Supply Power Type:Battery
Torque Measurement Range:0 to 15 kgf-cm
Torque Measurement Type:Force & Strain Measurement
