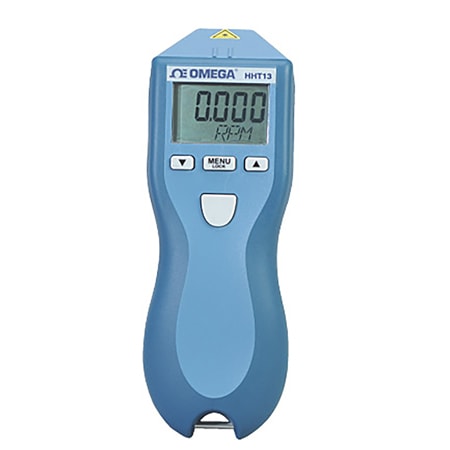

DwyerOmegaHHT13-Series

HHT13

5 to 200,000 rpm

가격: 510,910 원

VAT 10%: 51,091 원

총 금액: 562,001 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.01 %

Adjustments:4-quadrant, pressure-sensitive joystick button adjusts flash rate, x2 and ÷2

Battery Size and Type:NiMh

Charging Time:Fully recharges in 4 to 5 hours

Display Size:7.62 mm (0.30 in)

Display Type:6 Digit LCD

External Mode:Range and Display: 5 to 12,500 fpm Update Rate: 1 second typical fpm Accuracy: ±0.1 fpm or ±0.01 of reading Trigger-to-Flash Delay: < 5 µs External Input: 0 to 5V, 5 TTL compatible (+12 Vp max), 20 µs min pulse width; positive edge triggered

Height:77.1 mm

Internal Mode:Flash Range: 100 to 12,500 fpm Resolution: 0.1 FPM Accuracy: ±0.5 FPM or ±0.01% of reading Update Rate: Instantaneous

Length:237.3 mm

Material Construction Option:1 Rechargeable Battery Pack

Measurement Note:Flash Energy: 150 mJ/flash, 1100 LUX as bright as 10 W units; Flash Duration: 10 to 30 µs

Measurement Type:Flash

Measuring Range:100 to 12500 fpm

Resolution:0.1 fpm

Running Time:100 minutes typical at 1800 fpm with fully charged batteries

Tachometer Mode:Range: 5 to 250,000 rpm Accuracy: ± 0.01% or 0.1 rpm Update Rate: 1 second typical External Input: 0 to 5V TTL compatible (+12 Vp max) 20 µs min pulse width; positive edge triggered

Weight:0.63 kg

문서 및 매뉴얼
