DwyerOmegaHHPT-51-series
HHPT-51

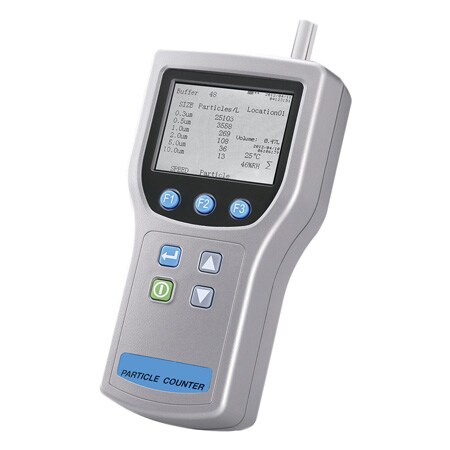

Handheld Particle Counter With SD Card Data Recorder and USB Interface
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:± 7 %
Approvals:Complies with CE, JIS B9921; 1997, ISO 21501-4
Battery Size and Type:Li-ion
Calibration:PSL particles in air
Charging Time:2 hours (fast charge mode), 27 hours (trickle charge mode)
Coincidence Loss:5% at 2,000,000 particles per cubic ft.
Counter Input Note:Counting Efficiency: 50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS B9921:1997)
Data Interface:USB
Device Modes:audio, Concentration, totalize
Display Type:TFT
Height:11 cm
Length:6.7 cm
Memory:500 sample records (rotating buffer)
Number of Channels:6
Number of Channels Note:Channels: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 µm
Operating Temperature, Max:40 °C
Operating Temperature, Min:10 °C
Operating Time:4 hrs
Relative Humidity:20% to 90%
Series ID:HHPT-51-series
Source of Light:Laser diode
Storage Humidity, Max:Up to 90%
Storage Temperature, Max:50 °C
Storage Temperature, Min:-10 °C
Supply Power Note:AC adapter, 12 Vdc at 3 A, 100 to 240 Vac, 50 to 60 Hz
Supply Power Type:AC
Supply Voltage:12 Vdc
Time Delay:0 to 24 hours
Vacuum Rating:Internal pump flow controlled
Variables Logged:Date, time, counts, relative humidity, temperature, sample volumes, alarms and labels
Volumetric Flow Rate, Max:2.83 l/min
Weight:875 g
Width:21.8 cm
Zero Count:1 count/5 minute (per JIS B9921:1997)
문서 및 매뉴얼
