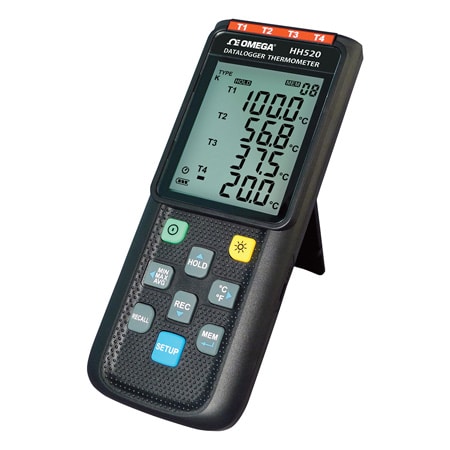

DwyerOmegaHH520-TC-Logger
HH520
4 CHANNEL DATALOGGER
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Data Logging Capability
Battery life:100 hr
Data Interface:USB
Display Type:Backlit LCD
Height:187 mm
Input Protection Voltage:30 Vrms
Length:29 mm
Measurement Type:Thermocouple
Number of Channels:4
Operating Temperature Note:0 to 50°C (32 to 122°F);10 to 90% RH non-condensing
Sampling Rate:2.5 Hz (2.5 updates/second)
Software Compatibility:Windows® XP/Vista/7/8/10
Storage Temperature Note:-20 to 60°C(-4 to 140 °F); 10 to 75% RH
Storage Temperature, Max:60 °C
Storage Temperature, Min:-20 °C
Supply Voltage:6 Vdc
Temperature Accuracy:± 0.1%
Temperature Accuracy Note:(Does Not Include Thermocouple Sensor Error):± (0.1% rdg + 0.7°C)/± (0.1% rdg + 1.4°F) between 18 to 28°C (64 to 82°F); ± (0.4% rdg + 0.7°C)/± (0.4%rdg + 1.4°F) below -100°C (-148°F)
Temperature Coefficient:0.01% of reading + 0.05°C per °C(<18 or >28°C)
Temperature Resolution:0.1 °C
Temperature Resolution Note:0.1°C <600°C (0.1°F <1000°F); 1.0°C ≥ 600°C (1.0°F ≥ 1000°F)
Weight:290 g
Weight Note:290 g (10.2 oz)
Width:75 mm
