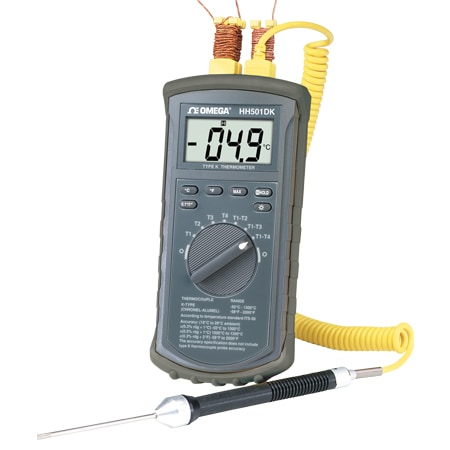

DwyerOmegaHH501DK-Series
HH501DK
4 INPUT TEMP TYPE K CE
- 가격
- 316,450 원
- VAT 10%
- 31,645 원
- 총 금액
- 348,095 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Read HOLD,MAX Function
Battery Indication:“+ -” is displayed when battery voltage drops below operating level
Diameter:53 mm
Display Type:3.5 Digit LCD
Display Type Note:3 1⁄2 digit liquid crystal display (LCD) with maximum reading of 1999 Default Display Output : Zero : Automatic
Electrical Connection:Sub-D Male Miniature Connector
Height:195 mm
Measuring Temperature Range, Max:1300 °C
Measuring Temperature Range, Min:-50 °C
Number of Channels:4
Operating Temperature Note:0 to 50°C (32 to 122°F)@ <70% RH
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Overrange:(OL) or (-OL) is displayed
Polarity:Automatic, positive implied, negative polarity indication
Relative Humidity, Max:0.8
Relative Humidity, Min:0%
Sampling Rate:2.5 Hz (2.5 updates/second)
Storage Temperature Note:-20 to 60°C (-4 to140°F), 0 to 80% RH with battery removed from meter
Storage Temperature, Max:60 °C
Storage Temperature, Min:-20 °C
Supply Voltage:9 Vdc
Temperature Accuracy:± 0.3%
Temperature Accuracy Note:± (0.3% rdg + 1°C) -50 to 1000°C; ± (0.5% rdg + 1°C) 1000 to 1300°C; ± (0.3% rdg + 2°F) -58 to 1999°F Stated accuracy : 23°C ± 5°C <75% relative humidity (accuracy specification does not include
Temperature Resolution:0.1 °C
Temperature Sensor Type:Thermocouple
Thermocouple Type:K
Weight:250 g
Weight Note:Approximately 250 g (9 oz) including battery
Width:92 mm
