DwyerOmegaHH501AS-BS-HH501AR-BR
HH501AS

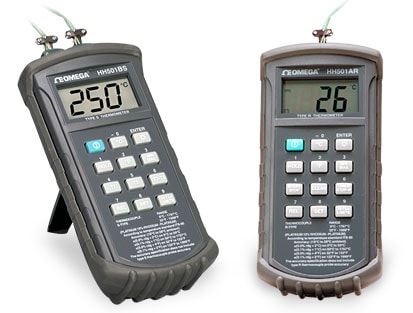

Handheld Digital Thermometers Type R and S Input, High Temperature Measurement
- 가격
- 254,690 원
- VAT 10%
- 25,469 원
- 총 금액
- 280,159 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:MIN/MAX/REL/HOLD Functions , Auto Power-Off
Battery Indication:“+ -” is displayed when battery voltage drops below operating level
Battery life:100 hr
Differential Voltage, Max:1 V
Display Type:3.5 Digit LCD
Display Type Note:3 1/2 digit liquid crystal display(LCD) with a maximum reading of 1999 Default Display Output : Zero : Automatic
Electrical Connection:Miniature Male Thermocouple Connector
Height:195 mm
Input Protection Voltage:24 V
Input Protection Voltage Note:24V dc or 24V ac rms maximum input voltage on any combination of input pins.
Length:53 mm
Measuring Temperature Range, Max:1767 °C
Measuring Temperature Range, Min:0 °C
Number of Channels:1
Operating Temperature Note:0°C to 50°C (32°F to 122°F)<80% RH
Overrange:-OL is displayed.
Polarity:Automatic, positive implied, negative polarity indication.
Sampling Rate:1 Hz (1 update/second)
Storage Temperature Note:-20 to 60°C (-4°F to 140°F)<70% RH
Storage Temperature, Max:60 °C
Storage Temperature, Min:-20 °C
Temperature Accuracy:± 5 °C
Temperature Accuracy Note:Stated accuracy at 23°C± 5°C,<75% relative humidity
Temperature Coefficient:0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)
Temperature Resolution:1 °C
Weight:365 g
Width:92 mm
