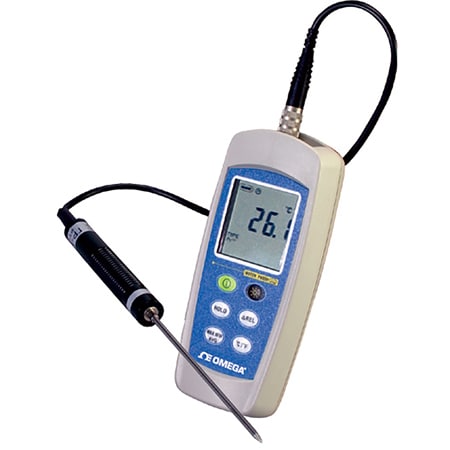

DwyerOmegaHH370-Series
HH370
WATERPROOF RTD W/PROBE CE
- 가격
- 861,070 원
- VAT 10%
- 86,107 원
- 총 금액
- 947,177 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Battery life:100 hr
Display Type:4 Digit LCD
Height:150 mm
Length:30 mm
Measuring Temperature Range, Max:300 °C
Measuring Temperature Range, Min:-100 °C
Number of Channels:1
Operating Temperature Note:Operating Temperature/Humidity:0 to 50°C (32 to 122°F); 0 to 80% RH
Power Consumption:0.53 mA
Probe Dimensions Note:Approx 120 mm (4.72")
Probe Length:120 mm
Relative Humidity, Max:0.8
Relative Humidity, Min:0%
Sampling Rate:2 Hz (2 updates/second)
Sheath Length:100 mm
Sheath Material:304 Stainless Steel
Storage Temperature Note:Storage Temperature and Humidity:-10 to 60°C (14 to 140°F); 0 to 80% RH
Storage Temperature, Max:60 °C
Storage Temperature, Min:-10 °C
Supply Power Note:Maximum Voltage at Temperature Input: 60 Vdc or 24 Vrms AC
Supply Voltage:60 Vdc
Temperature Accuracy:± 0.1% of rdg + 0.4 °C
Temperature Accuracy Note:Accuracy (at 23 ± 5°C): ± 0.1% of rdg + 0.4°C (± 0.1% of rdg + 0.8°F) Probe Accuracy : IEC751, Class A ± 0.15°C ± 0.002t (t = measurement temperature)
Temperature Coefficient:For ambient temperatures from 0 to 18°C and 28 to 50°C, add 0.01% of rdg + 0.03°C or 0.01% of rdg + 0.06°F
Temperature Resolution:0.1 °C
Temperature Sensor Type:RTD
Weight:175 g
Weight Note:175 g (6.2 oz)
Width:66 mm
문서 및 매뉴얼
