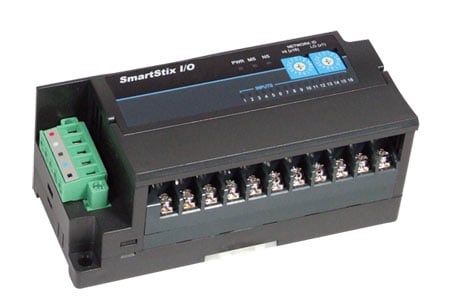

DwyerOmegaHE559-Series---SmartStix-

HE559DIM710

Din Rail Mountable, Compact I/O Expansion for the XE/XT/XL OCS Series Controller

가격: 918,460 원

VAT 10%: 91,846 원

총 금액: 1,010,306 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Data Interface:CsCAN

Data Interface Note:Number of Total Nodes: 253;Configuration Method: Module ID set using Two Rotary Switches

Digital I/O Note:Rated Input Current: 7 mA , Rated Voltage: 11 to 25 Vdc, ON Voltage Level: 19 Vdc or less, OFF Voltage Level: 6 Vdc or less, Input Characteristics Bidirectional, Isolation Method: Photo coupler OFF to ON Response: 0 to 3 ms or less, ON to OFF Response: 0 to 3 ms or less

Digital Input:Digital: Low = 0 Vdc nominal

Electrical Connection:Removable Screw Terminal

Height:50 mm

Input Type:Digital

Input Voltage Note:Absolute Maximum Input Voltage: ±10V

Isolation:Photo coupler

LED Indicators:I/O Status (One per Point); Power, Module Status, Network Status

Length:176 mm

Number of Channels, Input:Digital: 32

Number of Channels, Output:None

Output Signal:None

Response Time:OFF to ON: 0 to 3 ms or less , ON to OFF: 0 to 3 ms or less
