DwyerOmegaSeries-H2

H2S-3

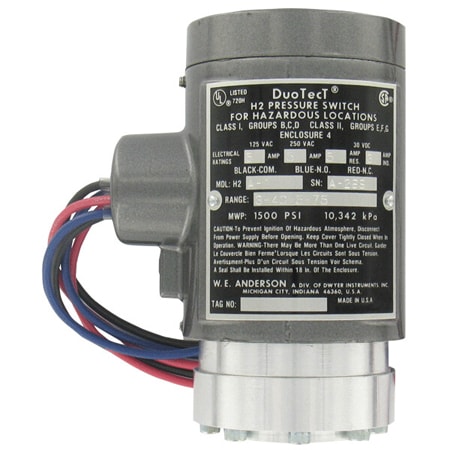

H2S-3 100-1000 & 150-1500 PSIG

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:Dwyer a DwyerOmega Brand

Compliance:CSA, UL

Decreasing Pressure, Max:1000 psi

Decreasing Pressure, Min:100 psi

Enclosure Ratings:Hazardous Location Rated, IP66, NEMA Type 4X

Enclosure Ratings Note:UL listed explosion-proof, Class I, Groups B, C, and D. Class II Groups E, F, and G. Meets NEMA 4X (IP66). CSA optional. Class I, Groups B, C & D. Class II, Groups E, F, & G -20°C ≤ Tamb ≤ 75°C T6 [optional -20°C ≤ Tamb ≤ 40°C T5] Type 4.

Increasing Pressure, Max:1500 psi

Increasing Pressure, Min:150 psi

Materials, Wetted:316 Stainless Steel, Buna-N (NBR), FEP

Measurement Pressure Type:Gauge

Mounting Orientation:Not Position Sensitive

Pressure Limits:Up to 1500 psi

Process Connection Size:1/4 in

Process Connection Type:NPT Female

Set Point Adjustment:Internal Thumbwheel or Nut

Switch Note:5 A @ 125/250 VAC. 5 A res., 3 A ind. @ 30 VDC. Gold contacts optional

Switch Rating:5 A @ 125/250 Vac; 5 A , 3 A @ 30 Vdc

Switch Type:(2) SPDT Snap
