DwyerOmegaG2-Series-GP
G2S05NP9GMX

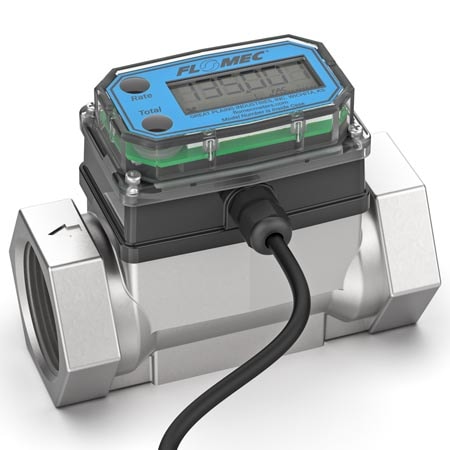

1/2" SS Indicating Flow Transmitter, 1-10 GPM, Pulse Output
- 가격
- 2,244,150 원
- VAT 10%
- 224,415 원
- 총 금액
- 2,468,565 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Approvals:CE
Battery Size and Type:Alkaline AAA
Calibration Note:Gallons Per Minute (Gallons Default)
Certifications:NIST Traceable Calibration
Display Type:LCD
Electrical Output:Scaled Pulse, 42 to 420 Hz
Enclosure Ratings:IP65, NEMA Type 4
Height:1.4 in
K-Factor:660 pulses/gal
Length:4.2 in
Materials, Wetted:316 Stainless Steel, Alumina Ceramic, Aluminum, PVDF, Tungsten Carbide
Media Compatibility:Liquids
Operating Pressure, Max:1500 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-18 °C
Output Signal:Current
Process Connection Size:1 1/2 in
Process Connection Type:NPT Female
Repeatability:±0.1%
Volumetric Flow Rate, Max:10 GPM
Volumetric Flow Rate, Min:5 GPM
Width:2 in
