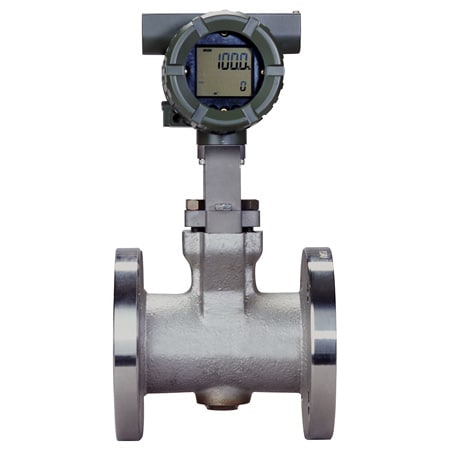

DwyerOmegaFV500C-Series
FV-505C-F-D
EOL
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.75 %
Accuracy Detail:±0.75% of Reading (Liquid) (±0.5% of Reading: Typical Accuracy/ Non-Guaranteed) ±1% of Reading (Gas, Steam)
Data Interface:BRAIN Communication
Data Interface Note:Communication Signal: BRAIN or HART communication signal (superimposed on a 4 to 20 mA DC signal) Note: HART is a registered trademark of the HART Communication Foundation. Conditions of Communication Line: Load Resistance:250 to 600 Ω(including cable resistance). Supply Voltage:16.4 to 42 V DC for digital communications BRAIN and HART protocols. (16.4 to 30 V DC for intrinsically safe type). BRAIN: Space from other Power Line: 15cm or more (Parallel wiring should be avoided.) Communication Distance: Up to 2 km,when polyethylene insulated PVC- sheathed cables (CEV cables) are used. Communication distance varies depending on type of cable used and wiring. Load Capacitance: 0.22 µF or less Load Inductance: 3.3 mH or less Input Impedance Communicating Device: 10 kΩ or more at 2.4 kHz.
Detector Type:Integral
Display Type:LCD
Electrical Connection:1/2 in NPS female Conduit with Screw Terminal block
Electrical Connection Note:In case of /FF1 or /CF1, CF11, /KF2, /KS2, /SF2, /SS2 the screw length is deeper than ANSI standard for 0.5 to 2 threads.
Electrical Output:4 to 20 mA, Two 125 mA SPST SSR
Enclosure Material:N/A
Enclosure Ratings:IP67 Type 4X (IEC 60529)
Materials, Wetted:JIS SUS348
Measurement Pressure Type:Gauge
Media Compatibility:Gases, Liquids, Steam
Mounting Plates:Flange
Operating Pressure, Max:412 psi
Operating Temperature, Max:250 °C
Operating Temperature, Min:-29 °C
Output Detail:Pulse output,alarm output and status output use the common terminal, therefore these functions are not used simultaneously. Output Signal (◇): Dual Output (Both Analog and Transistor contact output can be obtained simultaneously). In this case refer to the item “Remarks on installation” for power supply and pulse output wiring. Analog: 4 to 20 mA DC, 2-wire system. Transistor Contact Output*: Open collector, 3-wire system. Pulse,alarm,status output are selected by parameter setting. Contact rating: 10.5 to 30 V DC, 120 mA DC*1 Low level: 0 to 2 V DC. *1: 10.5 to 30 V DC. 80 mA DC for ATEX Intrinsically Safe Approval (/KS2) and IECEx Intrinsically Safe Approval (/SS2)
Process Connection Size:1/2 in
Process Connection Type:ANSI Flange
Repeatability:±0.2%
Supply Power:10.5 to 42 Vdc
Volumetric Flow Rate, Max:26 GPM
Volumetric Flow Rate, Min:4.13 GPM
Weight:6 lb
