DwyerOmegaFSW9000-Series

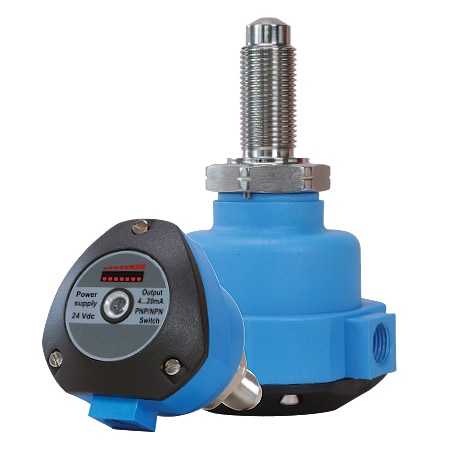

FSW-91-R
Liquid Flow Transmitter and Switch
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 5 %
Adjustments:Potentiometer
Electrical Connection:N/A
Enclosure Material:None
Enclosure Ratings:IP65, NEMA 4
Flow Indication:8 LED Bar Graph
Insertion Length:2 in
Linear Flow Rate, Max:2 m/s
Linear Flow Rate, Min:0.04 m/s
Materials, Wetted:316 Stainless Steel
Media Compatibility:Liquids
Operating Pressure, Max:4351 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Signal:Current
Probe Diameter:0.625 in
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Process Temperature, Max:80 °C
Process Temperature, Min:-20 °C
Repeatability:±1%
Response Time:3 to 10 sec
Supply Power Note:85 to 240 Vac, 50/60 Hz or 24 Vdc ±10%
Supply Voltage:85 to 240 Vac, 24 Vdc
Switch Rating Note:FSW-90-R + FSCN-90: relay (SPDT) and 4 to 20 mA
Switch Type:SPDT NO/NC, Selectable
Weight:1.5 lb
