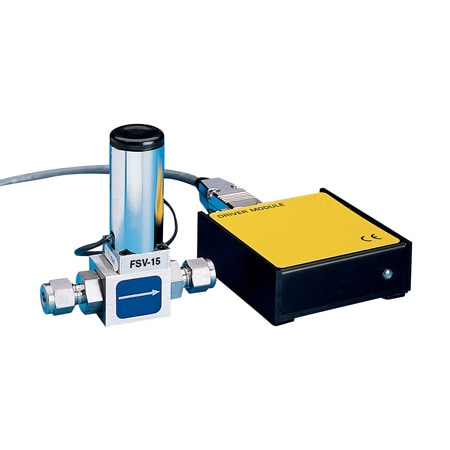

DwyerOmegaFSV10-Series
FSV11
316SS - 1/4" Compression, 0.009 Cv ECV
- 가격
- 1,482,180 원
- VAT 10%
- 148,218 원
- 총 금액
- 1,630,398 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Air Flow, Max:9700 ml/min
Approvals:RoHS, CE
Approvals Note:EMC Directive 89/336/EEC EN55011:1991; Group 1, Class A EN50082-2:1995
Cable Length:8 in
Cv Factor:0.009 gal/min
Differential Pressure, Max:50 psi
Electrical Connection:9 - Pin D Connector
Flow Rate Note:Based on 10 psig (690 mbar) differential pressure.
Height:1 in
Input Control Signal:0 to 5 Vdc, 4 to 20 mA
Leak Rate Under Vacuum:less than 10^⁻9 cc He/s
Length:3 in
Material Construction Option:N/A
Materials, Wetted:316 Stainless Steel, 416 Stainless Steel, FKM
Measurement Pressure Type:Differential
Operating Pressure, Max:500 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Orifice Size:0.02 in
Process Connection Size:1/4 in
Process Connection Type:Compression Fitting
Process Temperature, Max:54 °C
Process Temperature, Min:-10 °C
Response Time:500ms
Supply Power Note:12 to 30 Vdc, 1 A @ 12 Vdc; 0.5 A @ 24 Vdc via 9-pin D connector or DC power jack
Supply Voltage:12 to 30 Vdc
Surface Temperature, Max:54 °C
Turndown Ratio:100:1
Valve Height:3.45 in
Valve Length:3.25 in
Valve Type:normally closed
Valve Width:1 in
Water Flow, Max:125 ml/min
Width:3 in
