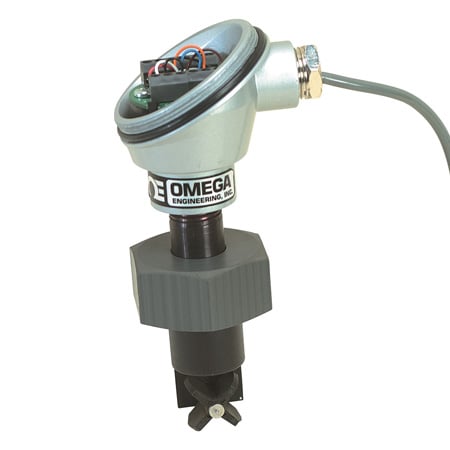

DwyerOmegaFP7002-Series
FP7002
Paddlewheel Flow & Temperature Sensor/Transmitter
- 가격
- 1,220,630 원
- VAT 10%
- 122,063 원
- 총 금액
- 1,342,693 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 2 %
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4
Loop Resistance, Max:Ω = (V supply–12V)/0.02 A
Material Construction Option:PVC Fittings
Materials, Wetted:FKM, Polypropylene, PVC
Measurement Pressure Type:Gauge
Operating Pressure Note:Do not exceed maximum ratings of the piping. Depending on the material of the fitting, the operating temperature/pressure may be limited by the piping and not by the sensor. For all PVC tee fittings, do not exceed 150 psig @ 27°C (80°F), 100 psig @ 38°C (100°F), 60 psig @ 49°C (120°F) or 30 psig @ 60°C (140°F), owing to thesert the tee. FP7000 sensor: 0 to 26°C (32 to 80°F) up to 150 psig; max pressure decreases 1.1 psig per each 0.56°C (1°F) above 27°C (80°F) for a max temperature of 93°C (200°F) at 18 psig maximum
Operating Pressure, Max:150 psi
Operating Pressure, Min:0 psi
Operating Temperature, Max:100 °C
Operating Temperature, Min:0 °C
Output Detail:current
Pipe Size, Max:3 in
Pipe Size, Min:0.75 in
Pressure Drop Note:max pressure decreases 1.1 psig per each 0.56°C (1°F) above 27°C (80°F) for a max temperature of 93°C (200°F) at 18 psig maximum
Pressure Drop, Max:1.1 psi
Process Connection Size:N/A
Process Temperature, Max:93 °C
Process Temperature, Min:0 °C
Repeatability Error:±1%
Supply Current:50 mA max
Supply Power Note:12 to 18 Vdc @ 50 mA maximum
Supply Voltage:12 to 18 Vdc
Temperature Accuracy:± 1.7 °C
Viscosity Range:5 cPs
Volumetric Flow Rate, Max:460 GPM
Volumetric Flow Rate, Min:2 GPM
