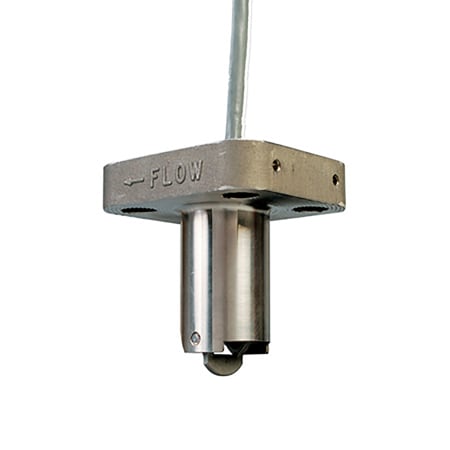

DwyerOmegaFP3-5200
FP-5201
SS PADDLE SENSOR 1.25/12"
- 가격
- 1,283,680 원
- VAT 10%
- 128,368 원
- 총 금액
- 1,412,048 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 ft/s
Cable Length:25 ft
Cable Length Note:7.5 m (25'), can be extended up to 30 m (100') with copper wire
Electrical Output:Sine Wave
Impedance:10 kΩ
K-Factor:12 Hz/fps
Linearity Error:±1%
Material Construction Option:N/A
Materials, Wetted:316 Stainless Steel, 347 Stainless Steel, CD4MCu Stainless Steel, Fluoroloy B, Tungsten Carbide
Measurement Pressure Type:Gauge
Media Compatibility:Liquids
Media Compatibility Note:10%, with particulate size not exceeding 5 mm cross section or length
Mounting Orientation:N/A
Operating Pressure, Max:1500 psi
Operating Pressure, Min:0 psi
Output Detail:12 Hz per ft/sec, 80 mV peak-to-peak per fps nominal
Pipe Connection Note:Mini Tap
Pipe Size, Max:12 in
Pipe Size, Min:1.25 in
Process Connection Size:1/2 in
Process Connection Type:NPT Female
Repeatability Error:±0.5%
Sensor Length:2.5 in
Supply Current:10 mA max
Supply Power Note:5 to 24 Vdc @ 10 mA maximum
Supply Voltage:5 to 24 Vdc
Velocity, Max:20 ft/s
Velocity, Min:1.6 ft/s
Viscosity Note:1 Centipoise (water); up to 5 cp above 5 fps velocity
Viscosity Range:5 cPs
Weight:0 kg
