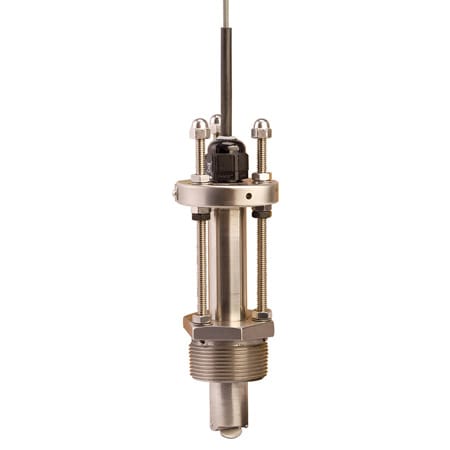

DwyerOmegaFP2540-Series
FP-2541
High Performance Flow Sensors
- 가격
- 1,565,760 원
- VAT 10%
- 156,576 원
- 총 금액
- 1,722,336 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Approvals:CE
Cable Length:25 ft
Cable Length Note:7.6 m (25') 305 m (1000') maximum
Cable Type:Twisted Pair with Foil Shield
Electrical Output:Open Collector, Sinking
K-Factor:15 Hz/fps
Linearity Error:±1%
Material Construction Option:N/A
Materials, Wetted:316 Stainless Steel, FKM, PEEK
Measurement Pressure Type:Gauge
Media Compatibility:Liquids
Mounting Orientation:N/A
Operating Pressure, Max:250 psi
Operating Pressure, Min:0 psi
Operating Temperature, Max:149 °C
Operating Temperature, Min:-46 °C
Output Detail:Output Signal: Open collector, sinking, Output Frequency: 15 Hz per fps
Pipe Connection Note:Hot Tap
Pipe Size, Max:24 in
Pipe Size, Min:1.5 in
Process Connection Size:1 1/2 in
Process Connection Type:NPT Male
Process Temperature Note:With standard FKM O-rings: 250 psi @82°C (180°F)
Process Temperature, Max:82 °C
Process Temperature, Min:0 °C
Repeatability Error:±0.5%
Supply Voltage:5 to 24 Vdc
Velocity, Max:20 ft/s
Velocity, Min:0.3 ft/s
Weight:0 kg
