DwyerOmegaFMG800-Series
FMG802

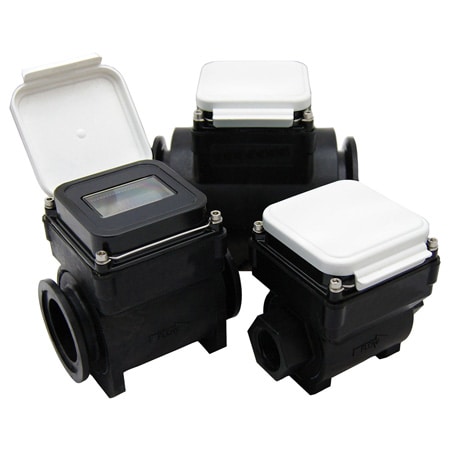

2" BATTERY POWERED MAGMETER
- 가격
- 2,267,870 원
- VAT 10%
- 226,787 원
- 총 금액
- 2,494,657 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:± 1% of reading (between 10% and 100% of maximum flow) ± 3% of reading (between cutoff and 10% of maximum flow)
Battery Size and Type:Alkaline AA
Cable Length:20 ft
Conductivity:> 20 µS/cm
Display Type:LCD
Empty Pipe Detection:Hardware/software, conductivity-based
Enclosure Ratings:NEMA Type 4X
Materials:Aluminum, Polyethylene
Materials, Wetted:316 Stainless Steel, Glass, Polypropylene
Media Compatibility:Acid Solutions, Conductive Liquids, Saltwater
Number of Digits:8
Number of Outputs:1
Operating Pressure, Max:150 psi
Operating Temperature, Max:54 °C
Operating Temperature, Min:-12 °C
Output Signal:DC Pulse
Pipe Size, Max:2 in
Pipe Size, Min:2 in
Process Connection Note:1 NPTF, 2 or 3" flange clamps with 2 or 3 NPTF fitting kit
Process Connection Size:2 in
Process Connection Type:NPT Female
Standard Pulse Rate:None
Storage Temperature, Max:80 °C
Storage Temperature, Min:-40 °C
Supply Power Note:FMG800: 6 each “AA” alkaline cells (included), replaceable. Estimated life is 1 to 2 years depending on usage, FMG810: 10 to 30 Vdc @ 60 mA maximum (15 mA average), NOTE: Using an unregulated power supply >18 Vdc may damage the meter due to AC line input voltage fluctuation.
Supply Power Type:Battery
Volumetric Flow Rate, Max:300 GPM
Volumetric Flow Rate, Min:6 GPM
Weight:0 lb
