DwyerOmegaFMG2000-Series

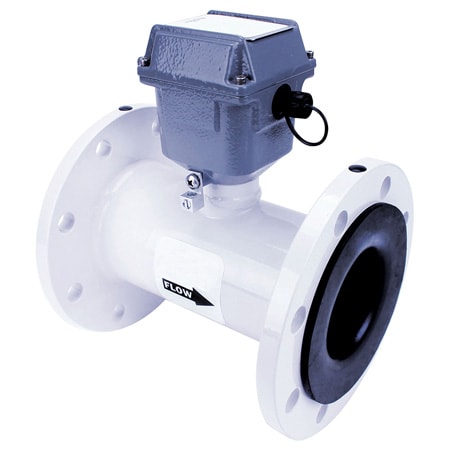

FMG-2008
Flanged Magmeter
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:± 1% of reading ± 0.04% of full-scale flow from low flow cutoff to maximum flow rate of 10 m/sec
Approvals:CE
Cable Length:6 m
Conductivity:> 20 µS/cm
Display Note:128 x 64 dot-matrix LCD
Display Type:LCD
Electrical Connection:5 - Position Plug
Empty Pipe Detection:Hardware/software, conductivity-based
Enclosure Ratings:IP68
Low Flow Cutoff:0.50 %
Materials:Steel, Epoxy, Santoprene, Polypropylene, Cast Iron
Materials, Wetted:316 Stainless Steel, Iron, Polypropylene
Media Compatibility:Acid Solutions, Conductive Liquids, Saltwater
Number of Digits:8
Number of Outputs:1
Operating Pressure, Max:150 psi
Operating Temperature, Max:54 °C
Operating Temperature, Min:-12 °C
Output Detail:Current sinking pulse, isolated, 36 Vdc at 10 mA max
Output Pulse Rate, Max:200 pulses/sec
Output Signal:DC Pulse
Pipe Size, Max:8 in
Pipe Size, Min:8 in
Process Connection Type:ANSI Flange
Storage Temperature, Max:70 °C
Storage Temperature, Min:-40 °C
Supply Power Note:DC Power : 9-36 Vdc @ 250 mA max, 30 mA average, AC Power : 85-264Vac, 50/60Hz, 0.12A
Supply Power Type:DC
Supply Voltage:9 to 36 Vdc / 60 Hz
Velocity, Max:10 m/s
Volumetric Flow Rate, Max:5140 GPM
Volumetric Flow Rate, Min:25.7 GPM
