DwyerOmegaFMA6000-Series

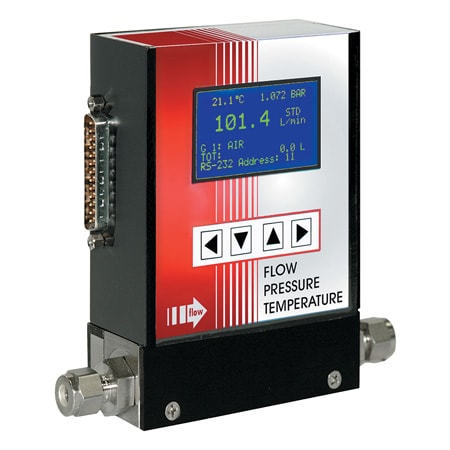

FMA6703

Multi Parameter Mass Flowmeter

가격: 4,211,720 원

VAT 10%: 421,172 원

총 금액: 4,632,892 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 1 %

Accuracy Detail:0°C to 50°C and 5 to 100 psia (34.5 - 689.5 kPa): ± 1% of full scale (F.S.)

Additional Features 1:2 SPDT 1A Relay, Multi-parameter Display

Altitude Sensitivity:Incremental deviation of up to 1% from stated accuracy, after re-zeroing

Burst Pressure:200 psi Maximum

Calibration:NIST 10-Point Certificate

Circuit Protection:Reverse polarity, Current Limit, Resettable Fuse

Compliance:CE

Data Interface:RS485

Data Interface Note:The digital interface operates via RS485 (optional RS232 is available)

Display Note:128 x 64 graphic LCD with backlight (up to 8 lines of text). User selectable backlight saver.

Display Type:LCD

Electrical Output:4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

Enclosure Ratings:Inst. Level II/Poll. Degree II (IEC 60664)

Humidity Range:Up to 70%

Leak Rate Under Vacuum:less than 10^⁻9 cc He/s

Materials, Wetted:316 Stainless Steel, 416 Stainless Steel, FKM

Media Compatibility:Air, Gases, Nitrogen, Oxygen

Operating Pressure, Max:100 psi

Operating Pressure, Min:0 psi

Operating Temperature, Max:50 °C

Operating Temperature, Min:-10 °C

Output Detail:Linear 0-5 Vdc (3000 ohms min load impedance); Linear 0-10Vdc (6000 ohms min impedance); Linear 4-20 mA (500 ohms maximum loop resistance). Maximum noise 20mV peak to peak (for 0-5 Vdc output).

Output Signal:Current, Voltage

Pressure Accuracy:± 1 %

Pressure Coefficient:0.01% FS/psi

Pressure Drop, Max:0.04 psi

Process Connection Size:1/4 in

Process Connection Type:Compression Fitting

Process Temperature, Max:50 °C

Process Temperature, Min:0 °C

Repeatability:± 0.15%

Response Time:300 ms

Response Time Note:300ms time constant; approximately 1 second to within ± 2% of set flow rate for 25% to 100% of full scale flow.

Supply Power Note:May be configured for three different options: Bipolar ± 15Vdc (± 200 mA maximum); Unipolar +12Vdc (300 mA maximum); Unipolar +24Vdc (250 mA maximum); Circuit boards have built-in polarity reversal protection. Resettable fuses provide power input protection

Supply Voltage:Bipolar ± 15Vdc, Unipolar 12Vdc to 24Vdc

Temperature Accuracy:± 1 °C

Temperature Coefficient:0.15% FS/°C

Volumetric Flow Rate, Max:50 SCCM

Volumetric Flow Rate, Min:1 SCCM

Weight:2.2 lb
