DwyerOmegaSeries-FLT93B

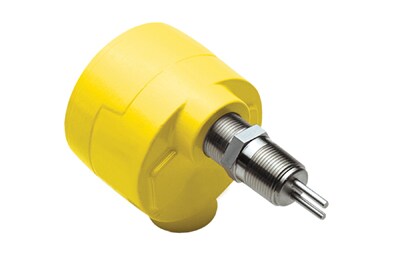

FLT93B-AC00
4.0" Insertion; Flow / Level Switch
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy Detail:•Gas Flow: ± 0.5 % reading or ± 2 SFPS [± 0,06 NMPS] •Liquid Flow: ± 0.5 % reading or ± 0.04 FPS [± 0,012 MPS] •Level/Interface: ± 0.25" [± 6,4 mm] •Temperature: ± 2 ºF [± 1 ºC]
Conduit Connection:1 in NPT Female Conduit
Control Output:2 SPDT, 1 DPDT
Enclosure Material:Aluminum
Enclosure Material Note:Polyester powder coated aluminum rated for NEMA Type 4X/IP67
Enclosure Ratings:Explosion-Proof
Enclosure Ratings Note:Explosion-Proof for Class I, Division 1, Groups B, C and D; Dust-Ignition-Proof for Class II, Division 1, Groups E, F and G; Class III, Division 1; Nonincendive for Class I, II and III, Division 2, Groups A, B, C, D, E, F and G,
Identification Tag:Stainless steel metal tag
Operating Temperature, Max:140 °F
Operating Temperature, Min:-40 °F
Output Signal:Voltage
Measurement Pressure, Max:2350 psi
Pressure Note:2350 psig [162 bar (g)]
Measurement Pressure Type:Gauge
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Relay Output:6 A @ 115 Vac/220 Vac/24 Vdc
Repeatability Note:•Switch Point: ± 0.5 % reading •Level/Interface: ± 0.125" [± 3,2 mm] •Temperature: ± 1 ºF [± 0,6 ºC]
Response Time:3 seconds
Sensor Material:316L Stainless Steel
Sensor Temperature, Max:350 °F
Sensor Temperature, Min:-40 °F
Series ID:Series-FLT93B
Service Setpoint Range:•Water-based Liquids: Set in the field. 0.01 FPS to 0.5 FPS [0,003 MPS to 0,15 MPS] for 0.75 W heater, 0.01 FPS to 3.0 FPS [0,003 MPS to 0,9 MPS] for 3.0 W heater •Hydrocarbon-based Liquids: 0.01 FPS to 1.0 FPS [0,003 MPS to 0,3 MPS] for 0.75 W heater, 0.01 FPS to 5.0 FPS [0,003 MPS to 1,5 MPS] for 3.0 W heater •Air/gas: 0.25 SFPS to 120 SFPS [0,08 NMPS to 37 NMPS] -0.75 watt heater at standard conditions of 70 ºF [21.1 ºC] and 14.7 psia [1,013 bar (a)]
Supply Voltage:120 to 230 Vac, 24 Vdc
Switch Type:Flow / Level Switch
Weight:8 lb
