DwyerOmegaModel-FCLS
FCLS-01

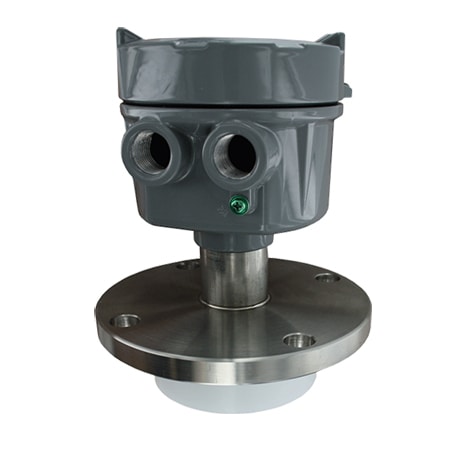

Flush capacitance level switch.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 23 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP65
Materials, Wetted:Aluminum, PTFE
Measurement Pressure, Max:285 psi
Media Compatibility:Bulk, Liquids, Powders
Mounting Orientation:Side Mount
Operating Temperature, Max:140 °F
Operating Temperature, Min:-4 °F
Power Consumption:2 W
Process Connection Size:2.5 in
Process Connection Type:JIS Flange
Process Temperature, Max:176 °F
Process Temperature, Min:-4 °F
Sensitivity:1 to 20 pF
Sensor Break Detection:Selectable fail high or fail low
Supply Power Type:AC
Supply Voltage:110 to 200 VAC
Switch Rating:3 A @ 250 Vac
Switch Type:SPDT NO/NC, Selectable
Time Delay:0 to 6 sec
Weight:7.1 lb
