DwyerOmegaModel-F7-MLK2
F7-MLK2

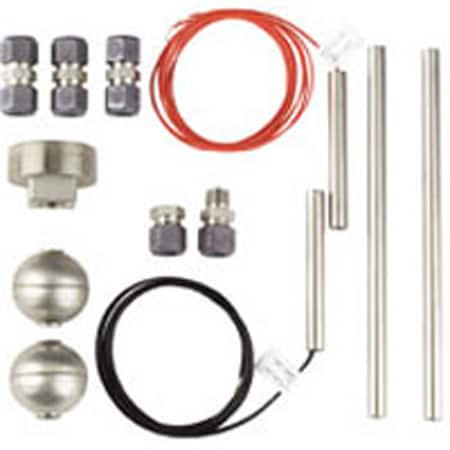

Multi-level switch kit.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 16 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Chemicals, Oil
Cable Material:N/A
Electrical Connection:Pigtail Leads
Material Construction Option:316 Stainless Steel Float
Materials, Wetted:316 Stainless Steel
Measurement Pressure Type:Gauge
Media Compatibility:Alcohols, Compatible Liquids, Oils, Water
Mounting Orientation:Horizontal with downward pointing index
Operating Temperature, Max:275 °F
Operating Temperature, Min:-40 °F
Process Connection Size:1/8 in
Process Connection Type:NPT Male
Proof Pressure:Up to 750 psi
Specific Gravity, Min:0.75
Stem Length:36 in
Switch Rating:30 VA: 0.14 A @ 220 Vac
Switch Type:SPST NO/NC
Tubing Outer Diameter:45659 in
Weight:3.3 lb
Wire Gauge:18 AWG
