DwyerOmegaDT-121
DT-121.RV/6/62/105/15/050/000

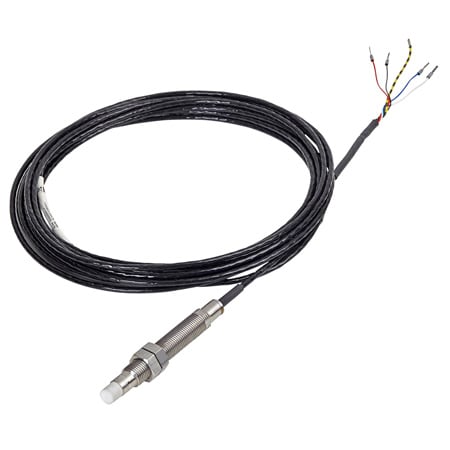

Transmitter for radial vibrations, 1.5 mm measuring range
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Accuracy Detail:1 °C to + 45 °C : ±0,2 % from full scale (FS) Overall operating temperature range : ±0.5 % (FS) Sensitivity accuracy in the temperature range of: 0 °C to +45 °C : ±5 % Overall operating temperature range : ±10 %
Approvals:CE Conformity as per EMC Directive EN 61326-1: 2013 EN 50581: 2012
Cable Diameter:2.9 mm
Cable Length:5 m
Cable Type:Insulated
Compensated Temperature, Max:27 °C
Compensated Temperature, Min:18 °C
Electrical Output:4 to 20 mA
Enclosure Ratings:IP68, IP69
Frequency Response:Loop Frequency: 5 Hz to 4 kHz
Housing Diameter:0.315 in
Housing Length:4.13 in
Housing Material:Stainless Steel
Integrated Cable Length:0.5 dm
Loop Resistance:250 Ω
Materials:Ceramic
Measurement Note:Eddy current Mesurment Axial Shaft Position
Measurement, Max:60 mil
Measurement, Min:0 mil
Mounting Torque:5 Nm
Operating Temperature, Max:105 °C
Operating Temperature, Min:-40 °C
Output Detail:4 - 20 mA, live-zero
Power Consumption:21 mA
Process Connection Size:3/8 in
Process Connection Type:UNF
Sensitivity:3,75 mils/mA
Storage Temperature, Max:125 °C
Storage Temperature, Min:-55 °C
Supply Power Note:+24 VDC (+12 VDC ... +32 VDC)
Supply Voltage:24 Vdc
Tip Diameter:7.2 mm
Transducer Type:Vibration Frequency Measurement
Transmitter Body Length:105 mm
Unthreaded Section:15 mm
Water tight Proof Pressure:Transmitter tip: 25 bar
Weight:150 g
Wiring/Connector Table:Loop : white (+), black (-) Dynamic output: red (+), blue (-)
