DwyerOmegaDRST-UN-Univ-Sig-Cond

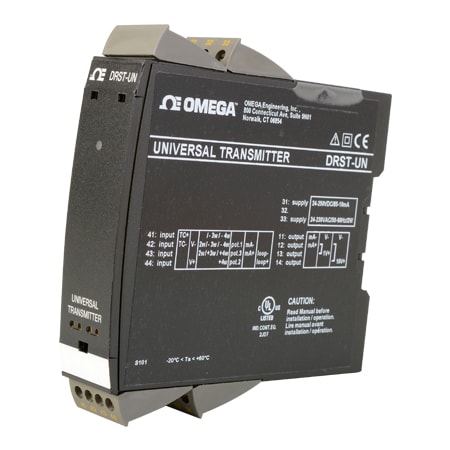

DRST-UN
Universal transmitter and Input for RTD,
- 가격
- 433,880 원
- VAT 10%
- 43,388 원
- 총 금액
- 477,268 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Approvals:UL: UL 508/C22.2 no. 14; NV-GL Marine Stand. f. Certific. No. 2.4; EU RO Mutual Recognition Type; Approval: MRA000000Z; SIL Hardware assessed for use in SIL applications; Authority Requirements:EMC: 2014/30/EU, LVD: 2014/35/EU, EAC: TR-CU 020/2011
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Cold Junction Compensation:20 to 28°C = ±1°C, -20 to 20°C/28 to 70°C = 2°C
EMC Immunity Note:Standard EMC Imunity: <±0.5% of span; Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span; Wire Size: 1 x 2.5 mm²
EMC Standard:EN61010-1, EN61326-1
Electrical Output:0 to 20 mA, 0 to 10 Vdc
Enclosure Ratings:IP20
Fuse Rating:250 Vac/400 mA
Height:109 mm
Input Control Signal:0 to 12 Vdc
Input Control Signal Note:Measurement Range: 0 to 12 Vdc; Programmable Measurement Ranges: 0/0.2 to 1, 0/1 to 5, 0/2 to 10 Vdc
Input Current:0 to 20 mA
Input Resistance:Voltage : Nom. 10 MΩ, Current: Nom. 20 Ω + PTC 50 Ω
Input Type:Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage
Input_Current Note:Programmable Measurement Ranges: 0 to 20 and 4 to 20 mA; Input Resistance: Nom. 20 Ω + PTC 50 Ω Sensor Error Detection: Loop; Break 4 to 20 mA: Yes
Isolation:Test/Working: 2.3 kVac/250Vac
Length:104 mm
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Detail:Signal Range: 0 to 20 mA; Programmable Signal Ranges: 0 to 20/4 to 20/20 to 0/20 to 4 mA; NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA; Output Limitation, on 4 to 20 and 20 to 4 mA signals: 3.8 to 20.5 mA; Output Limitation, on 0 to 20 and 20 to 0 mA signals: 0 to 20.5 mA; Signal Range: 0 to 10 Vdc; Programmable Signal Ranges: 0/0.2 to 1; 0/1 to 5 ; 0/2 to 10; 1 to 0.2/0; 5 to 1/0; 10 to 2/0 V
Output Signal:Current, Voltage
Potentiometer Input Range:10 to 100 kΩ
Power Consumption:2 W
RTD Input Note:Effect of Sensor Cable Resistance: < 0.002 Ω/Ω (3/4-wire); Cable Resistance, Per Wire: 50 Ω; Sensor Current: 0.2 mA; Short Circuit Protection: < 15 Ω; Sensor Error Current: 2 µA / 0 µA
RTD Type:10/20/50/100/200/250/300/400/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor, 10/20/50/100 Ω Cu Sensor
Relative Humidity:< 95% RH Non-Condensing
Response Time:1 sec
Response Time Note:Thermocouple: 1 sec, Current/Voltage: 400msec
Screw Terminal Torque:0.5 Nm
Sensor/Transmitter Power:5 to 16 Vdc/0 to 20 mA
Signal/Noise Ratio:> 60 dB
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Supply Power Note:21.6 to 253 Vac, 50 to 60 Hz or 19.2 to 300 Vdc
Supply Power Type:AC/DC
Supply Voltage:21.6 to 253 Vac, 19.2 to 300 Vdc
Temperature Coefficient:≤±0.01% of span/°C
Temperature Measurement Range:J: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C
Thermocouple Type:J, K, T, E, R, S, B, C, N, L, U, D, LR
Vibration:±0.7 g
Vibration Note:IEC 60068-2-6; 2 to 13.2 Hz: ±1 mm; 13.2 to 100 Hz: ±0.7 g
Weight:145 g
Width:23.5 mm
Wire Type:Stranded
