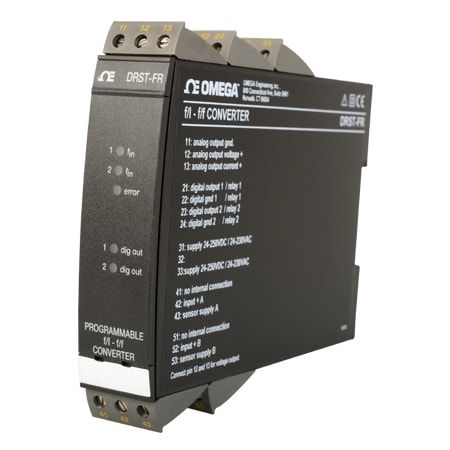

DwyerOmegaDRST-FR-Freq-Sig-Cond

DRST-FR

가격: 896,660 원

VAT 10%: 89,666 원

총 금액: 986,326 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Approvals Note:EMC:2014/30/EU, LVD:2014/35/EU

Calibration Temperature, Max:28 °C

Calibration Temperature, Min:20 °C

EMC Standard:NAMUR NE 21

Electrical Output:0 to 20 mA

Enclosure Ratings:IP20

Frequency Measurement Range:0 to 20 kHz

Fuse Rating:400 mA SB / 250 Vac

Height:109 mm

Input Range Note:Max. Offset: 90% of selected max. frequency;Min. Measurement Range: 0.001 Hz;Max. Frequency, with Input Filter ON: 50 Hz;Min. Period Time with Input Filter ON: 20 ms;Input Types: NAMUR acc. to DIN 19234;Input Types:Tacho;Input Types:NPN/PNP;Input Types:2-phase encoder;Input Types:TTL;Input Types:S0 acc. to DIN 43864

Input Type:Frequency

Isolation:3750 Vac

Length:130 mm

Linearity Error:< 0.1% of span

Load Resistance:Voltage Output : ≥ 500 kΩ, Current Output : ≤ 600 Ω

Mounting:DIN Rail 46277

Noise Calibration:>60 dB

Number of Inputs:1

Operating Temperature, Max:60 °C

Operating Temperature, Min:-20 °C

Optional Power Note:0 to 999 s

Output Detail:Current Output Min. Signal Range: 5 mA Current Limit: < 23 mA Voltage Output Min. Signal Range: 250 mV Relay Output Max. Voltage: 250 VRMS Max. Current: 2 AAC Max. AC Power: 100 VA Max. Load at 24 Vdc:1 A Other Output Types: Active outputs (NPN/PNP) Other Output Types: f/f Converter Output Other Output Types: Frequency generator Of Span: = of the presently selected range

Output Signal:Current, Voltage, Relay

Output Value:Process

Power Consumption:3.5 W, Internal - 3 W

Relative Humidity:<95% RH

Response Time:Analog :< 60 ms + period;Digital Output : < 50 ms + period

Screw Terminal Torque:0.5 Nm

Signal Dynamics Output:16 bit

Stability:Load Stability: ≤0.01% of span/100 Ω

Supply Power Note:Auxiliary Voltage: NAMUR Supply: 8.3 Vdc ±0.5 Vdc / 8 mA Effect of Supply Voltage: < 0.005% of span/Vdc S0 Supply: 17 Vdc/20 mA NPN/PNP Supply: 17 Vdc/20 mA Special Supply (Programmable): 5 to 17 Vdc/20 mA S0 Supply: 17 Vdc/20 mA NPN/PNP Supply: 17 Vdc/20 mA Special Supply (Programmable): 5 to 17 Vdc/20 mA

Supply Power Type:AC/DC

Supply Voltage:21.6 to 253 Vac, 19.2 to 300 Vdc

Temperature Coefficient:<±0.01% of span/°C

Update Rate:20 ms

Voltage Output Range:0 to 10 V

Warm Up Time:1 min

Weight:240 g

Width:23.5 mm

문서 및 매뉴얼

DRST-FR-Freq-Sig-Cond - DRST_FR_Series_manual_pdf
