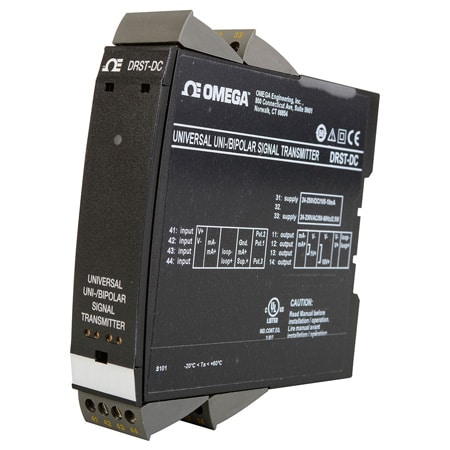

DwyerOmegaDRST-DC-Univ-BP-Sig-Cond
DRST-DC
Universal Uni-/Bipolar DC Signal Transmi
- 가격
- 516,040 원
- VAT 10%
- 51,604 원
- 총 금액
- 567,644 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Detail:Better than 0.05% of selected range
Approvals:UL, RoHS
Approvals Note:UL: UL 508/CC22.2 no. 14, LVD: 2014/35/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU
Bandwidth:> 40 Hz
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Current Measurement Range:±100 mA
Display Type:Programmer
EMC Immunity Note:NAMUR NE21, A Criterion, Burst: < ±1% of span Conducted Emission, class A: 150 kHz to 10 MHz
EMC Standard:NAMUR NE 21
Electrical Output:0 to 23 mA
Enclosure Ratings:IP20
Height:109 mm
Input Range Note:Current Input;Programmable Measurement Ranges: 0 to 1, 0 to 5, 1 to 5, 0 to 20, 4 to 20, ±1, ±5, ±10, ±20, ±50, ±100 mA;Custom Configurable Signal Range: ±100 mA;Min. Measurement Range (span): 0.5 mA;Voltage Input;Programmable Measurement Ranges: 0 to 0.1, 0 to 1, 0.2 to 1, 0 to 2.5, 0 to 5, 1 to 5, 0 to 10, 2 to 10, 0 to 100,0 to 300, ±0.1, ±1, ±2.5, ±5, ±10, ±100, ±300 V;Custom Configurable Signal Range:±300 V;Min. Measurement Range (span): 25 mV;Input Resistance: Nom. 3 MΩ (> 2.5 VDC);Input Resistance :Nom. > 10 MΩ (= 2.5 VDC);Potentiometer Input;Reference Voltage: 2.5 V;Calibration Resistance: 5 kΩ;Min. Potentiometer Resistance: 200 Ω
Input Type:Current, Voltage, Potentiometer
Isolation:2.3 kVac
Length:104 mm
Load Resistance:Current Output: 1000 Ω/± 20 V @ ±20 mA, Voltage Output: 2 kΩ, Buffered Voltage Output: > 500 kΩ min
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:3
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Output Detail:Current Output Signal Range: -23 to 23 mA (bipolar) Custom Config. Output Range: ±20 mA Min. Signal Range: 4 mA Current Limit: = 28 mA (unipolar) Current Limit: ± 28 mA (bipolar Passive 2-wire mA Output Programmable Ranges: 0 to 20 and 4 to 20 mA Ext. 2-Wire Loop Supply Range: 3.5 to 28.8 VDC. Voltage Output Programmable Signal Ranges: ±1, ±5 and ±10 V Programmable Signal Ranges: Direct or Inverted action Load (@ Voltage Output): = 500 kΩ. Shunted Voltage Output Signal Range: ± 1.2 V/± 12 V Programmable Standard Ranges: 0 to 1, 0 to 2.5, 0 to 5, 1 to 5, 0 to 10, 2 to 10 V ±1, ±2.5, ±5, ±10V Min. Span: 0.8 V Custom Config. Output Range: ±10 V Signal range: ± 23 V Programmable Standard Ranges: 0 to 1, 0.2 to 1, 0 to 2.5, 0 to 5,1 to 5, 0 to 10, 2 to 10, 0 to 20, 4 to 20; ±1, ±2.5, ±5, ±10, ±20 V Min. Span: 0.8 V Custom Config. Output Range: ±20 V Current Limit: < 50 mA
Output Signal:Current, Voltage, Shunted Voltage
Output Value:Process
Power Consumption:2.5 W
Power Dissipation:2.0 W
Relative Humidity:<95% RH
Response Time:< 20 ms
Response Time Note:Response Time: (0 to 90%, 100 to 10%) < 20 ms Response Time, Programmable: 0.0 to 60.0 s
Screw Terminal Torque:0.5 Nm
Signal Dynamics Input:24 bit
Signal Dynamics Output:18 bit
Stability:Load Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Supply Power Note:Loop Supply: 2-wire Loop Supply: > 16 V @ 20 mA , 3-wire Loop Supply: > 18 to < 28 V @ 23 to 0 mA Loop Supply Limitation: 27 to 35 mA avg., < 80 mA peak. Current Limit, Reference Voltage: < 60 mA Reference Voltage: 2.5 VDC ±0.5%
Supply Power Type:AC/DC
Supply Voltage:21.6 to 253 Vac, 19.2 to 300 Vdc
Voltage Loss:Input Voltage Drop: 0.6 V @ 20 mA nom.
Voltage Measurement Range:±300 Vdc
Voltage Output Range:± 1 V, ± 5 V, ± 10 V
Weight:250 g
Width:23.5 mm
Wire Gauge:26 to 14 AWG
